Individual hose record

4268958 Hose Repair Specifications

Excavator · Hitachi · EX450LC-5 · Attachments – Breaker

Finished length700 mm

Locate this hose

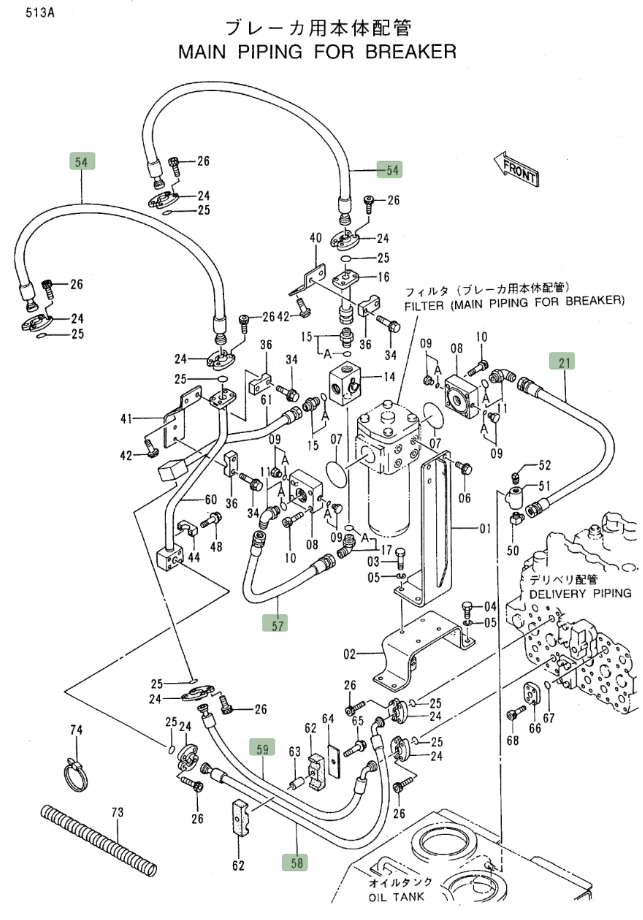

Installation diagram — Pipe No. 57

Locate Pipe No. 57 in the diagram, then confirm part number 4268958 before removing the hose.

Hitachi EX450LC-5 installation diagram showing hydraulic hose 4268958 at Pipe No. 57 — Hitachi EX450LC-5Part 4268958 · Pipe No. 57Open full-size diagram

Repair specifications

Part number: 4268958
Diagram pipe number: 57
Installation route: 过渡阀块(破碎器)~破碎器滤芯
Hose specification: DN32;2SN-20;7MPa
Finished length: 700 mm
Working pressure: 7 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4343209

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 900 mm
Specification: DN32;4SP-20;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 58

4348070

Installation route: 分配阀左~铁管(破碎器)

Length: 1,850 mm
Specification: DN32;4SP-20;32Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 70°法兰-重型

View full repair specifications

Diagram Pipe No. 34

4375307

Installation route: 分配阀下左~过渡阀块(踏板)

Length: 3,400 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
