Individual hose record

4424949 Hose Repair Specifications

Excavator · Hitachi · ZX50U-3 · Hydraulic Tank

Finished length1,230 mm

Locate this hose

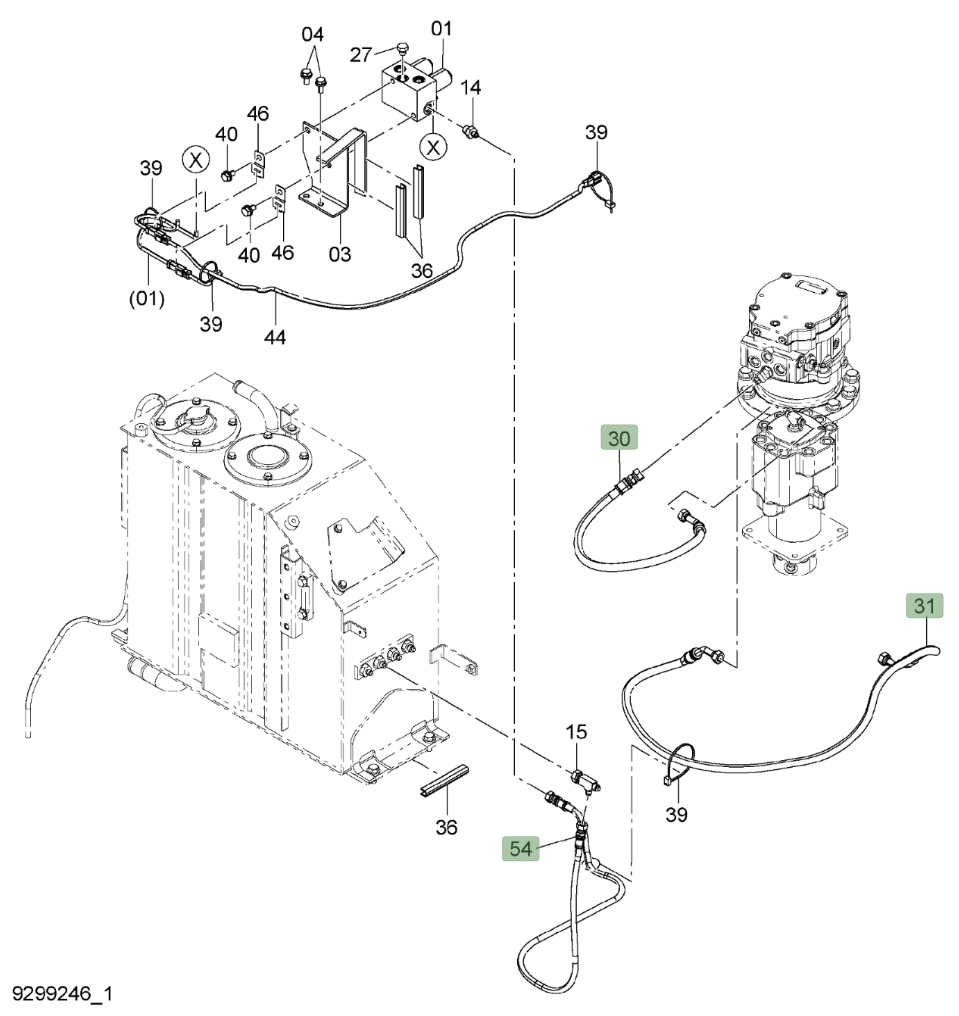

Installation diagram — Pipe No. 54

Locate Pipe No. 54 in the diagram, then confirm part number 4424949 before removing the hose.

Hitachi ZX50U-3 installation diagram showing hydraulic hose 4424949 at Pipe No. 54 — Hitachi ZX50U-3Part 4424949 · Pipe No. 54Open full-size diagram

Repair specifications

Part number: 4424949
Diagram pipe number: 54
Installation route: 液压油箱~电磁阀
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,230 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
