Individual hose record
DS2093180 Hose Repair Specifications
Excavator · Doosan · DX27Z · Attachments – Quick Coupler
Finished length450 mm
Locate this hose

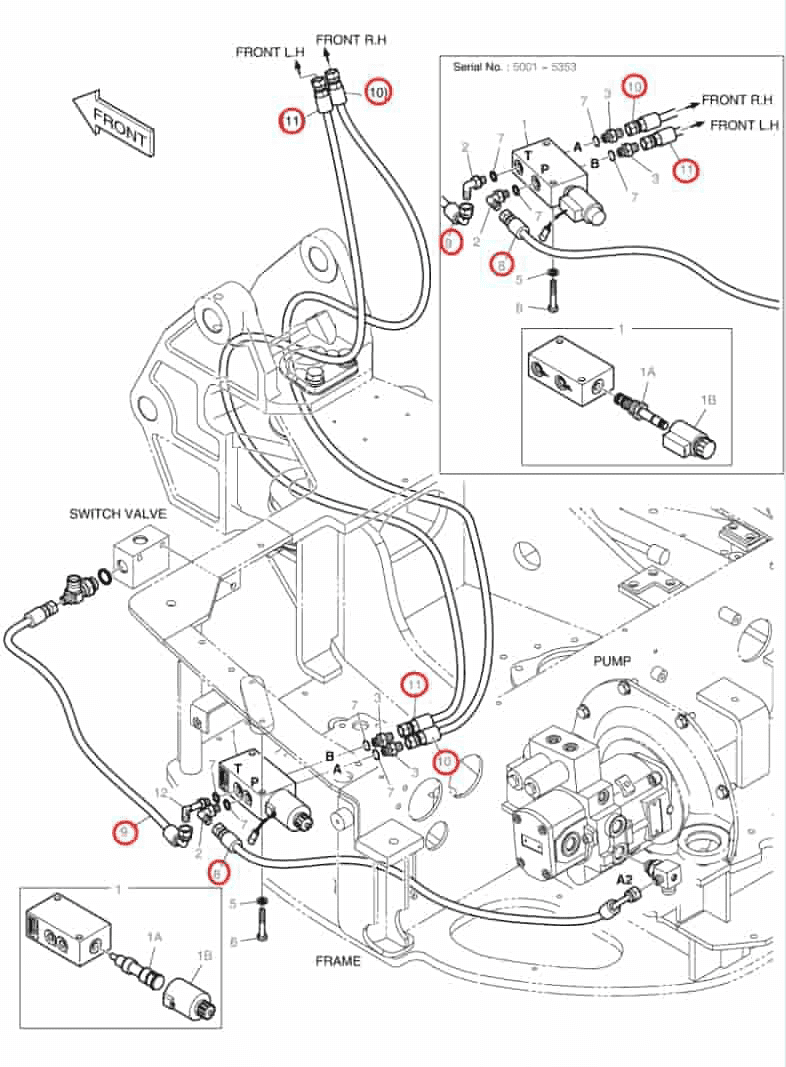

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number DS2093180 before removing the hose.
Repair specifications
- Part number
- DS2093180
- Diagram pipe number
- 9
- Installation route
- 快速联轴阀T口~开关阀B口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 450 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
