Individual hose record

4602337 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Hydraulic Tank

Finished length1,800 mm

Locate this hose

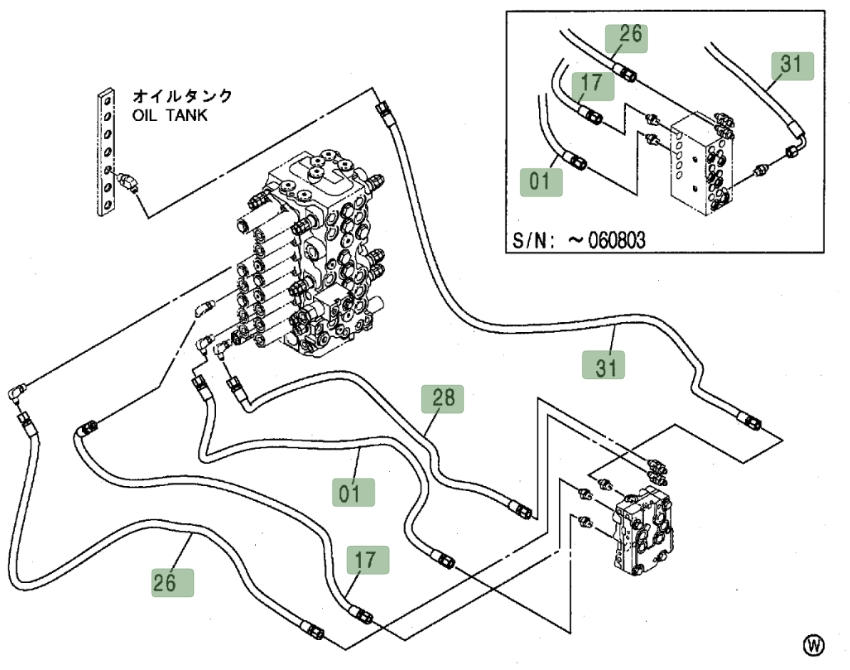

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 4602337 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4602337 at Pipe No. 31 — Hitachi ZX80Part 4602337 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 4602337
Diagram pipe number: 31
Installation route: 液压油箱~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,800 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 45

4441745

Installation route: 回油铁管(液压油箱)~先导滤芯

Length: 700 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 1

4463068

Installation route: 液压油箱~电磁阀(液压油箱)

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
