Individual hose record

4463068 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Hydraulic Tank

Finished length750 mm

Locate this hose

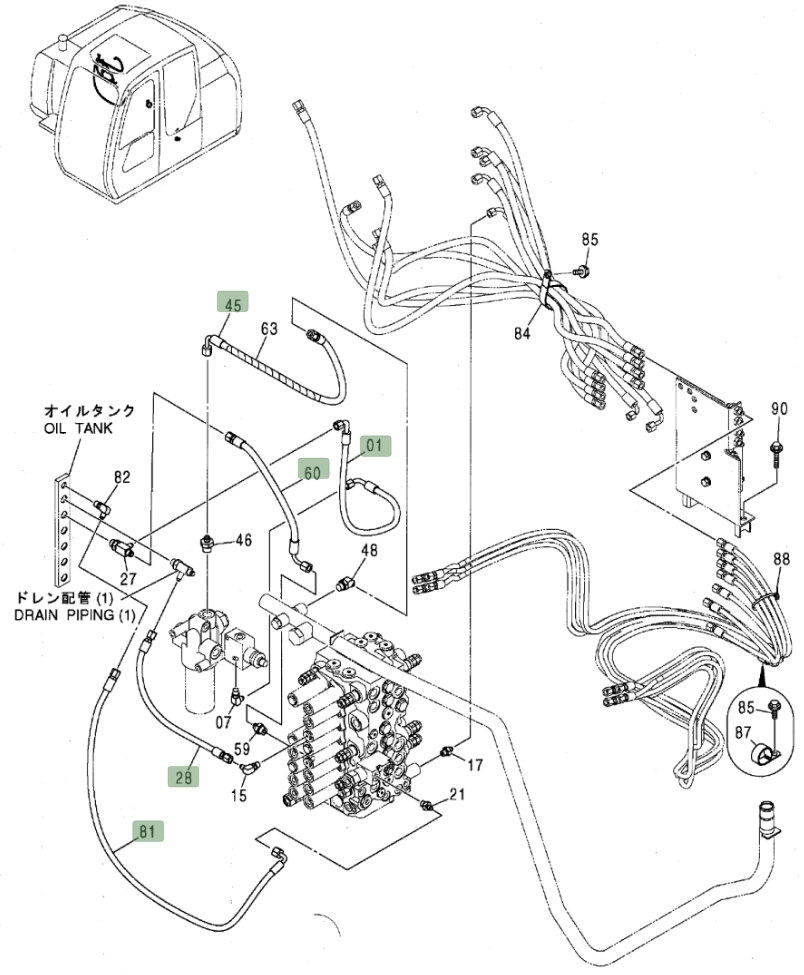

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4463068 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4463068 at Pipe No. 1 — Hitachi ZX80Part 4463068 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4463068
Diagram pipe number: 1
Installation route: 液压油箱~电磁阀(液压油箱)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 750 mm
Working pressure: 22.5 MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 45

4441745

Installation route: 回油铁管(液压油箱)~先导滤芯

Length: 700 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 31

4602337

Installation route: 液压油箱~中转接头

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
