Diagram Pipe No. 23
4447490
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,750 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4447483 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Swivel Joint
Finished length1,900 mm
Locate this hose

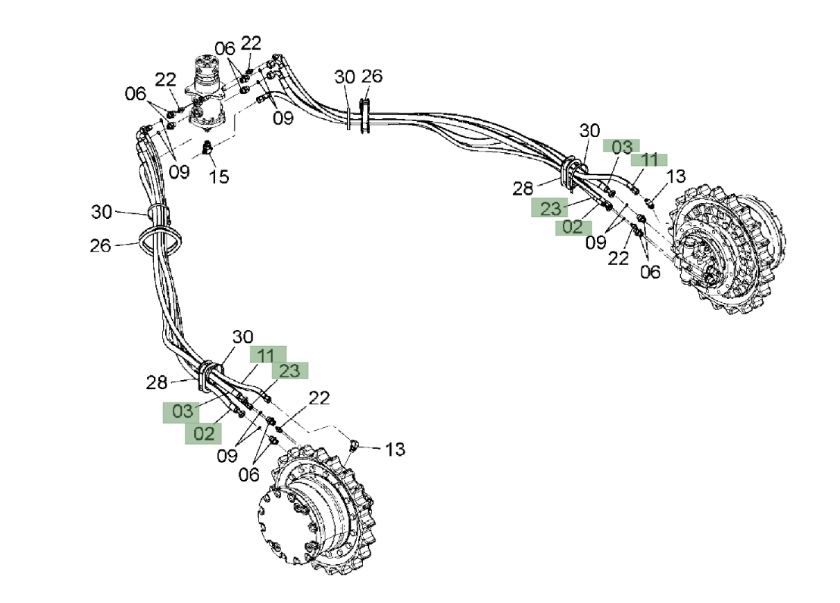

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4447483 before removing the hose.
Repair specifications
- Part number
- 4447483
- Diagram pipe number
- 11
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 2
