Individual hose record

DS2093130 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments

Finished length260 mm

Locate this hose

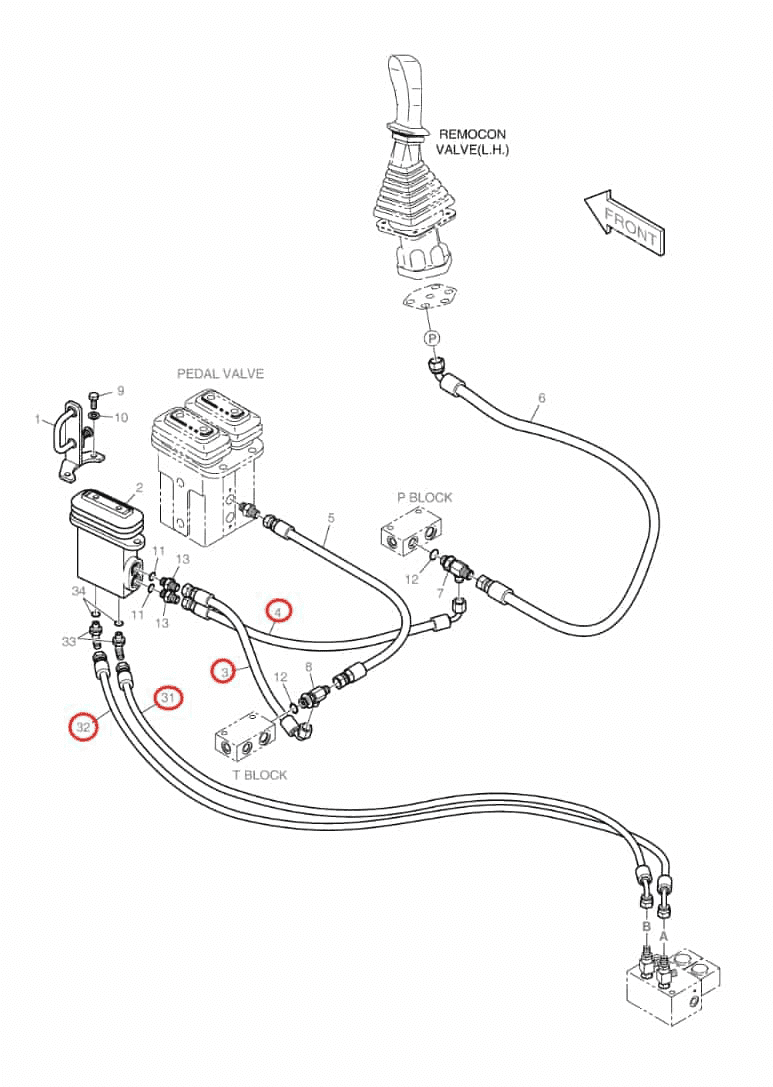

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number DS2093130 before removing the hose.

Doosan DX140LC installation diagram showing hydraulic hose DS2093130 at Pipe No. 3 — **Doosan DX140LC**Part DS2093130 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: DS2093130
Diagram pipe number: 3
Installation route: 附加装置踏板~回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 260 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
