Individual hose record

9263974 Hose Repair Specifications

Excavator · Hitachi · ZX370FLC-FE-6N · Boom Assembly

Finished length1,700 mm

Locate this hose

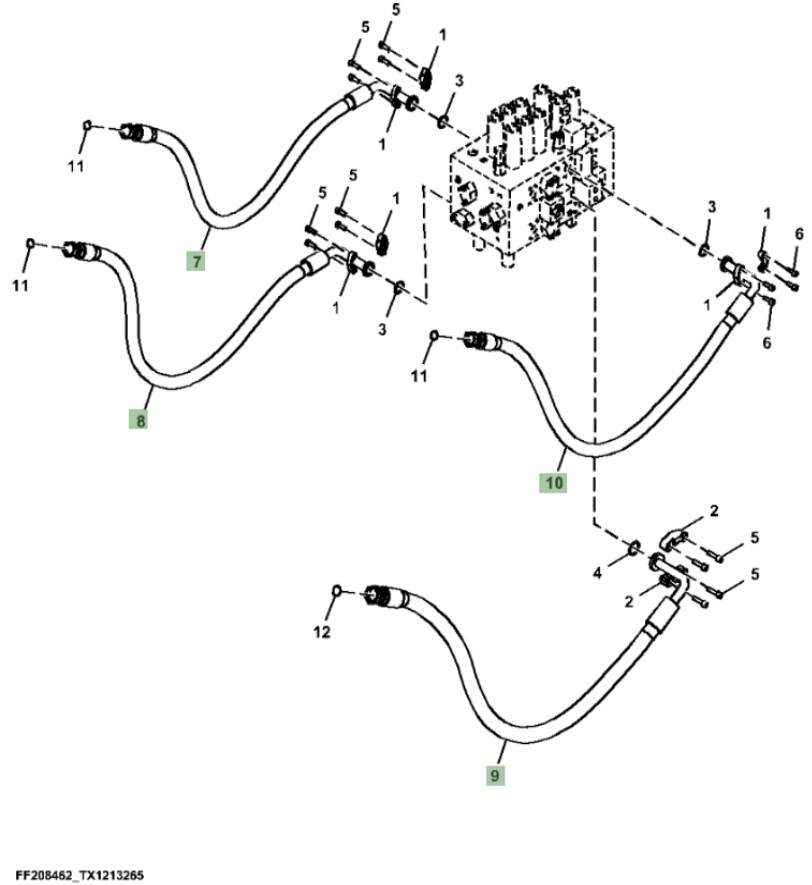

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 9263974 before removing the hose.

Part number: 9263974
Diagram pipe number: 8
Installation route: 大臂左3
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,700 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 大臂油缸

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 900 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 10

Installation route: 大臂左2

Length: 1,750 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

Diagram Pipe No. 3

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 900 mm
Specification: DN32;6SH-20;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 880 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
