Individual hose record
4618388 Hose Repair Specifications
Excavator · Hitachi · ZX270LC · Attachments – Lock Valve
Finished length4,550 mm
Locate this hose

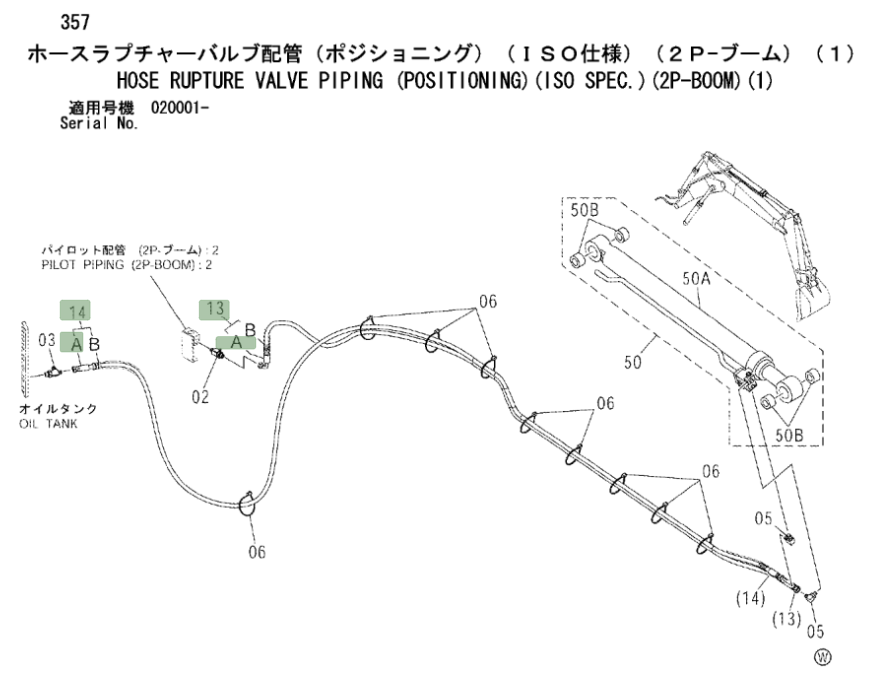

Installation diagram — Pipe No. 14A
Locate Pipe No. 14A in the diagram, then confirm part number 4618388 before removing the hose.
Repair specifications
- Part number
- 4618388
- Diagram pipe number
- 14A
- Installation route
- 小臂油缸锁止阀~液压油箱
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 4,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
