Individual hose record
730502006495 Hose Repair Specifications
Excavator · Sunward · SWE90UF · Hydraulic Tank
Finished length1,700 mm
Locate this hose

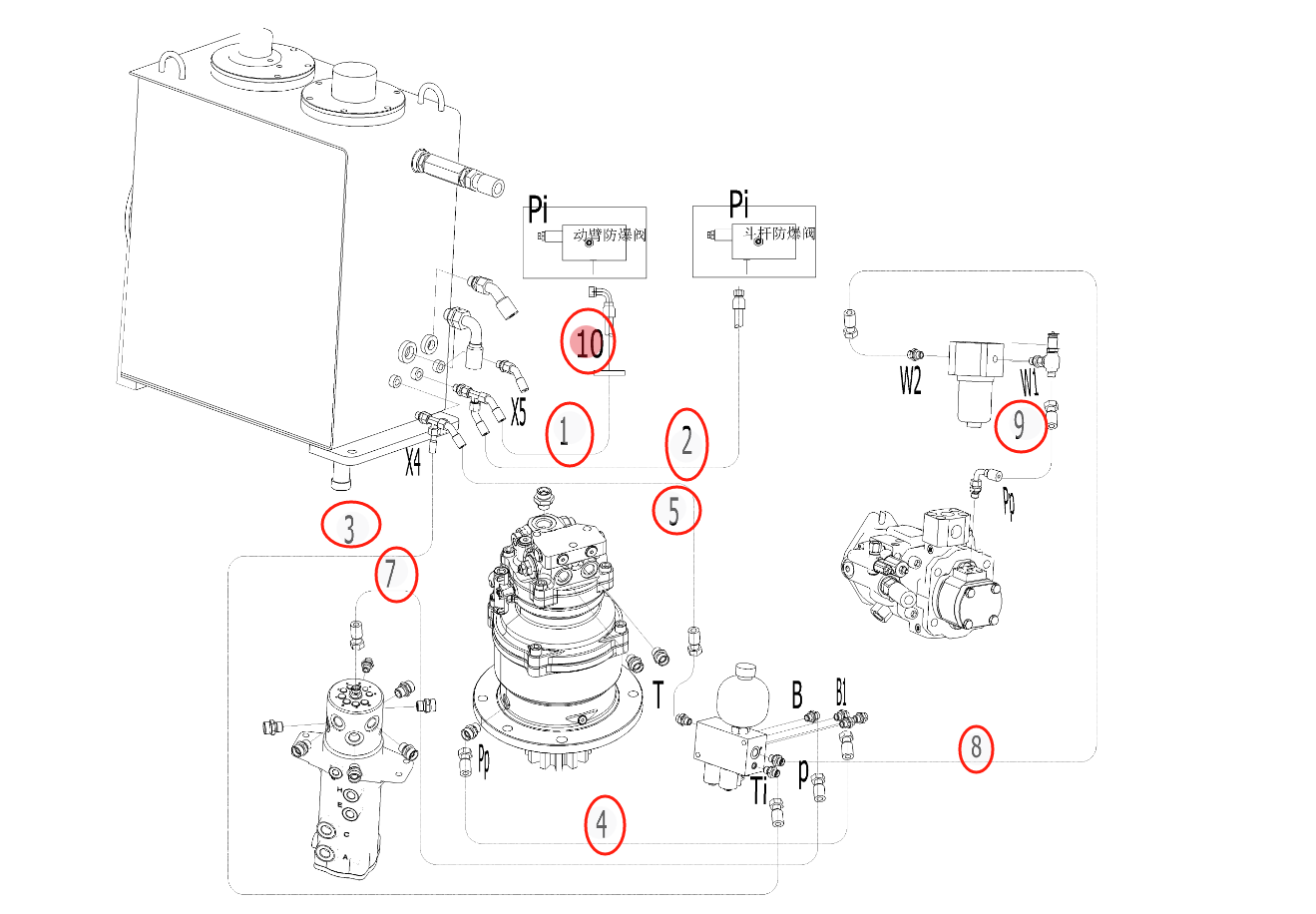

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 730502006495 before removing the hose.
Repair specifications
- Part number
- 730502006495
- Diagram pipe number
- 5
- Installation route
- 液压油箱~电磁阀(蓄能器)T
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 1,700 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
