Individual hose record

730504001510 Hose Repair Specifications

Excavator · Sunward · SWE150E · Solenoid Valve

Finished length700 mm

Locate this hose

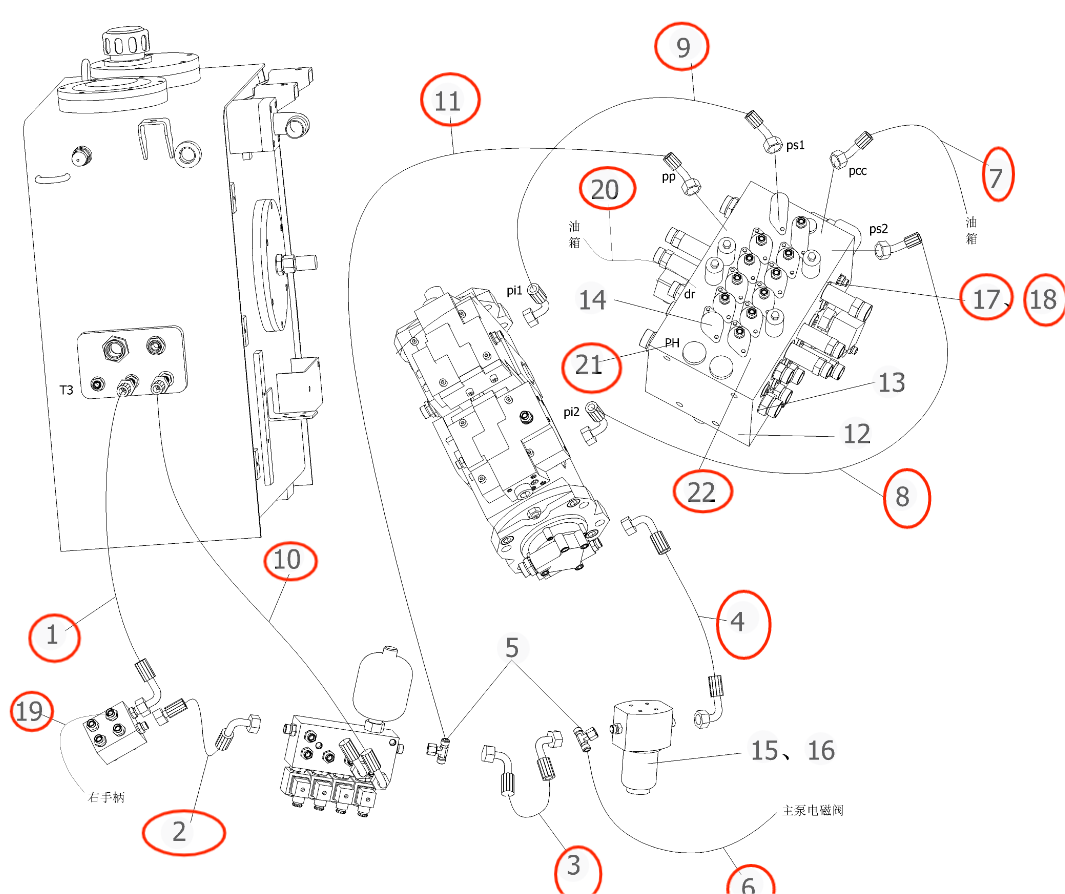

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 730504001510 before removing the hose.

Sunward SWE150E installation diagram showing hydraulic hose 730504001510 at Pipe No. 10 — Sunward SWE150EPart 730504001510 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 730504001510
Diagram pipe number: 10
Installation route: 电磁阀(蓄能器)~液压油箱
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 700 mm
Working pressure: 22.5 MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

730501000895

Installation route: 电磁阀(蓄能器)FT~过渡阀块AT

Length: 2,130 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 14

73050200A083

Installation route: 电磁阀(蓄能器)FP~液压油滤清器(OUT)

Length: 1,570 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730502001371

Installation route: 电磁阀(蓄能器)~进回油阀

Length: 2,100 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730501005433

Installation route: 电磁阀(蓄能器)F3~过渡阀块AP

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 9

730502003763

Installation route: 电磁阀(分配阀下)~

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
