Individual hose record

730502003763 Hose Repair Specifications

Excavator · Sunward · SWE150E · Solenoid Valve

Finished length650 mm

Locate this hose

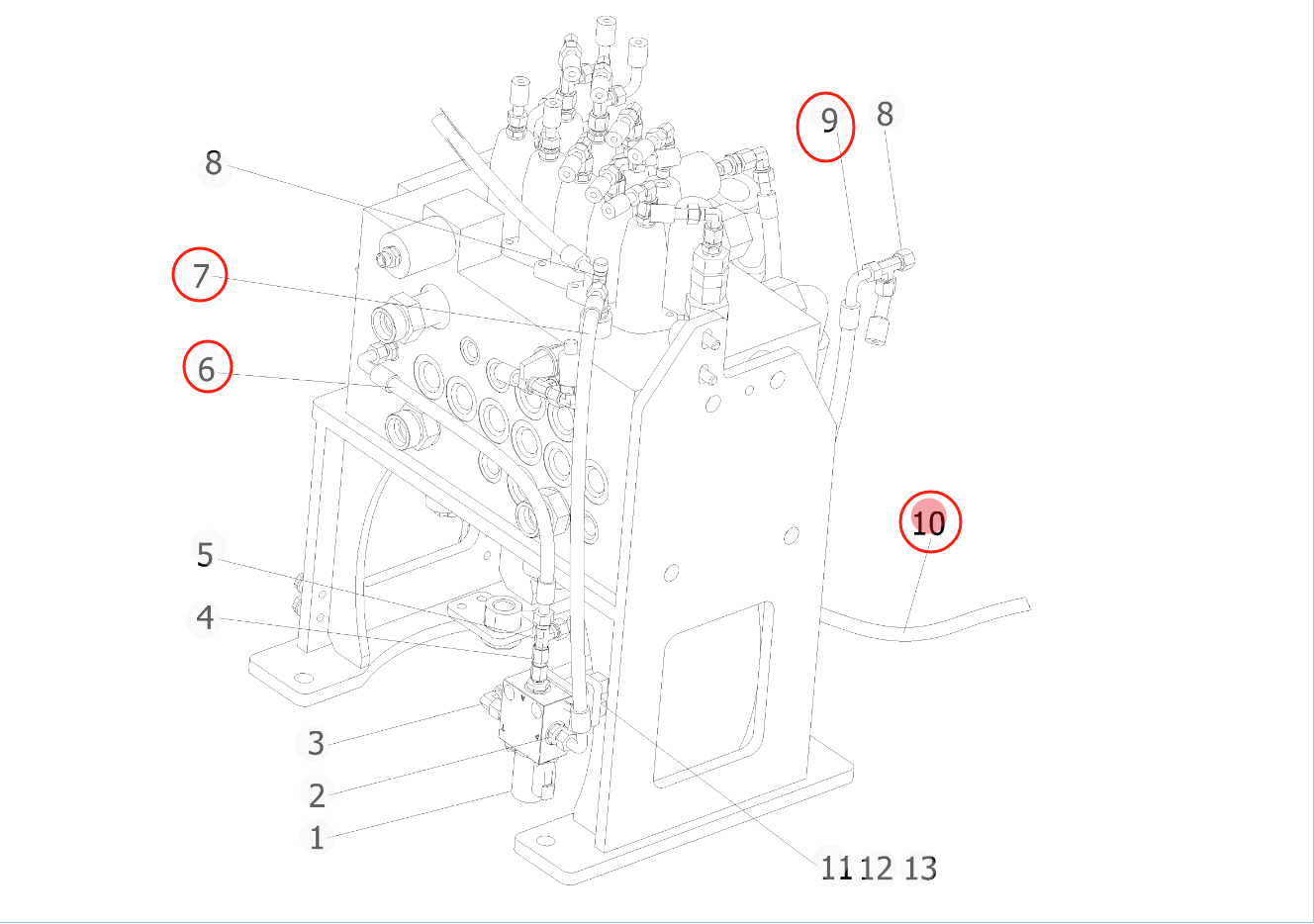

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 730502003763 before removing the hose.

Sunward SWE150E installation diagram showing hydraulic hose 730502003763 at Pipe No. 9 — Sunward SWE150EPart 730502003763 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 730502003763
Diagram pipe number: 9
Installation route: 电磁阀(分配阀下)~
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

730501000895

Installation route: 电磁阀(蓄能器)FT~过渡阀块AT

Length: 2,130 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 14

73050200A083

Installation route: 电磁阀(蓄能器)FP~液压油滤清器(OUT)

Length: 1,570 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730502001371

Installation route: 电磁阀(蓄能器)~进回油阀

Length: 2,100 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730501005433

Installation route: 电磁阀(蓄能器)F3~过渡阀块AP

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 10

730504001510

Installation route: 电磁阀(蓄能器)~液压油箱

Length: 700 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
