Individual hose record
4447441 Hose Repair Specifications
Excavator · Hitachi · ZX380LC-5N · Solenoid Valve
Finished length2,500 mm
Locate this hose

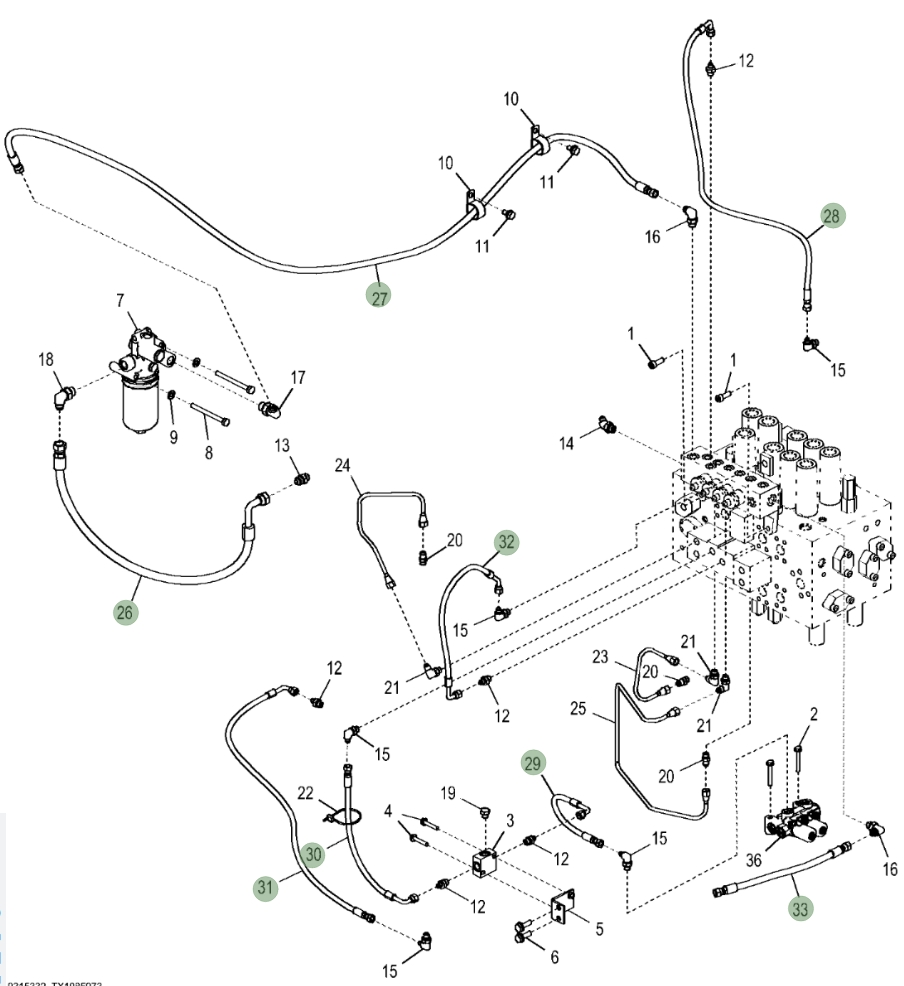

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 4447441 before removing the hose.
Repair specifications
- Part number
- 4447441
- Diagram pipe number
- 27
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
