Individual hose record
4715421 Hose Repair Specifications
Excavator · Hitachi · ZX380LC-5N · Solenoid Valve
Finished length1,050 mm
Locate this hose

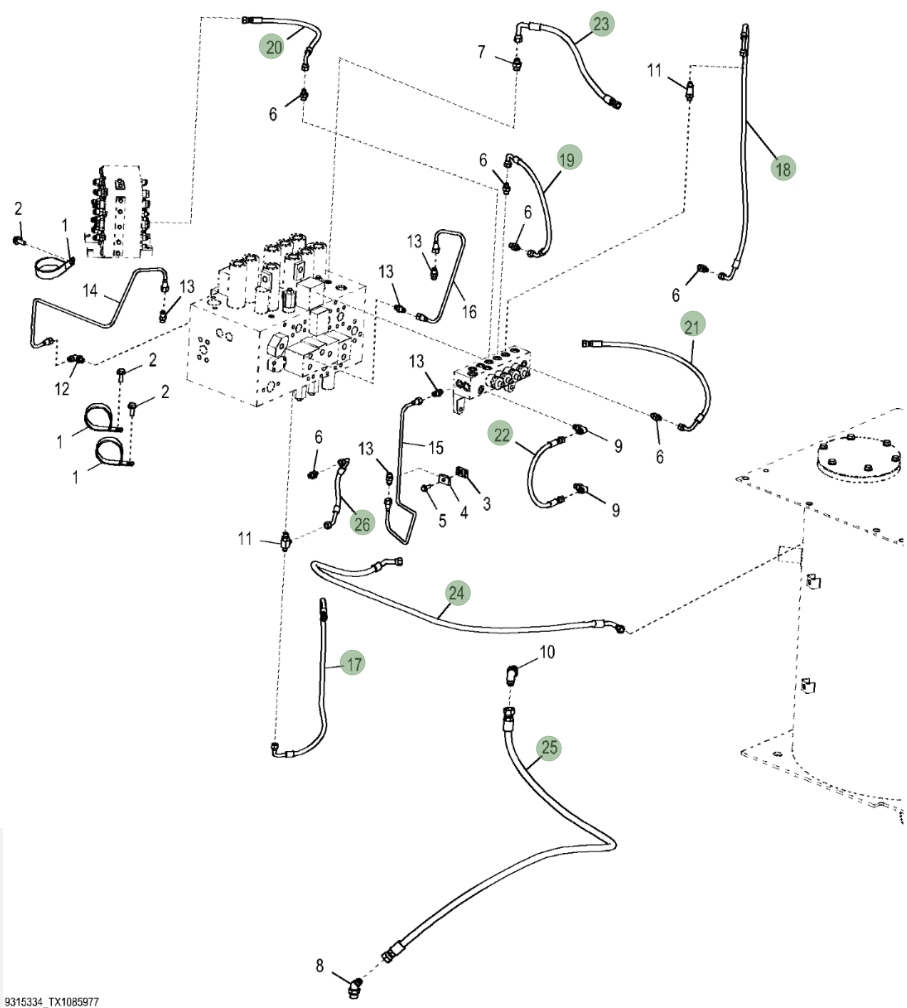

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4715421 before removing the hose.
Repair specifications
- Part number
- 4715421
- Diagram pipe number
- 18
- Installation route
- 电磁阀~
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 1,050 mm
- Working pressure
- 7 MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
