Individual hose record
KHJ11570 Hose Repair Specifications
Excavator · Case · CX80C · Swivel Joint
Finished length1,300 mm
Locate this hose

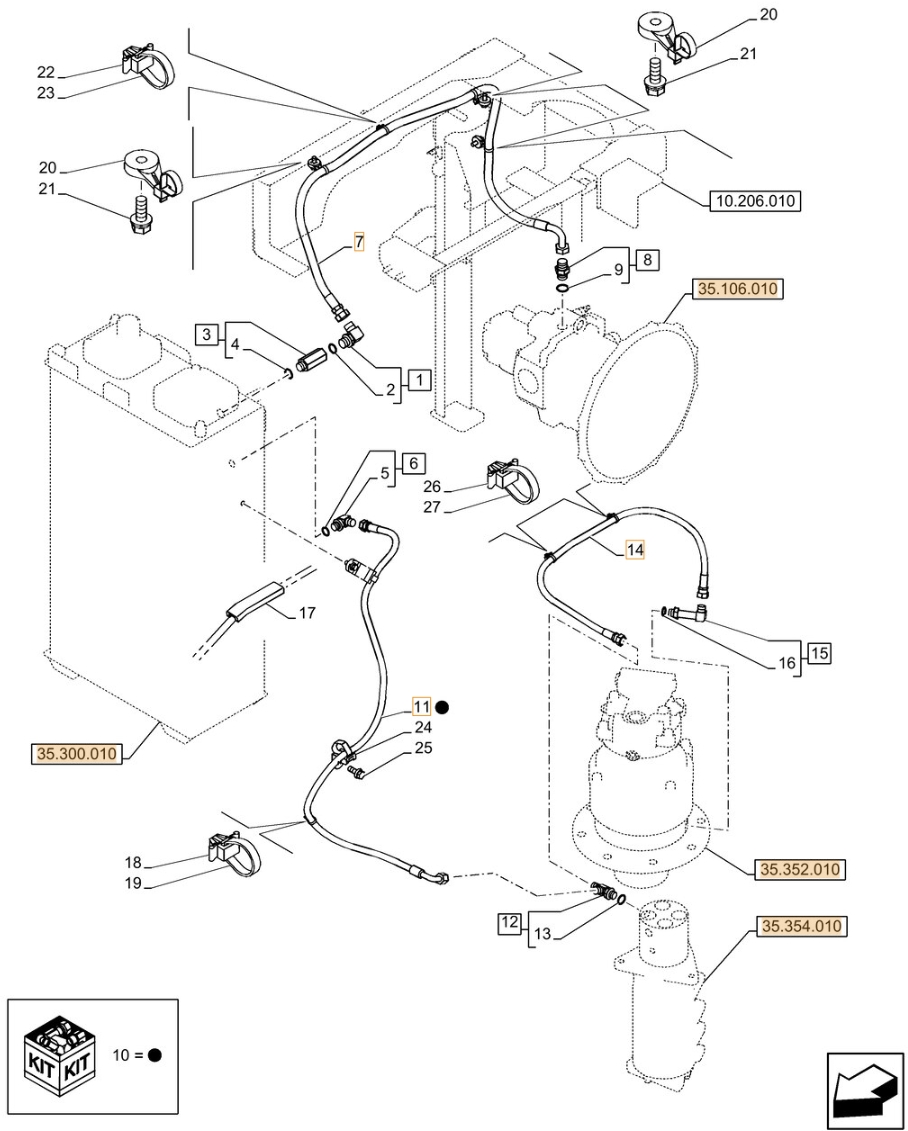

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number KHJ11570 before removing the hose.
Repair specifications
- Part number
- KHJ11570
- Diagram pipe number
- 11
- Installation route
- 回转接头~液压油箱
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,300 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
