Individual hose record

730502000799 Hose Repair Specifications

Excavator · Sunward · SWE235E-3 · Hydraulic Pump

Finished length2,000 mm

Locate this hose

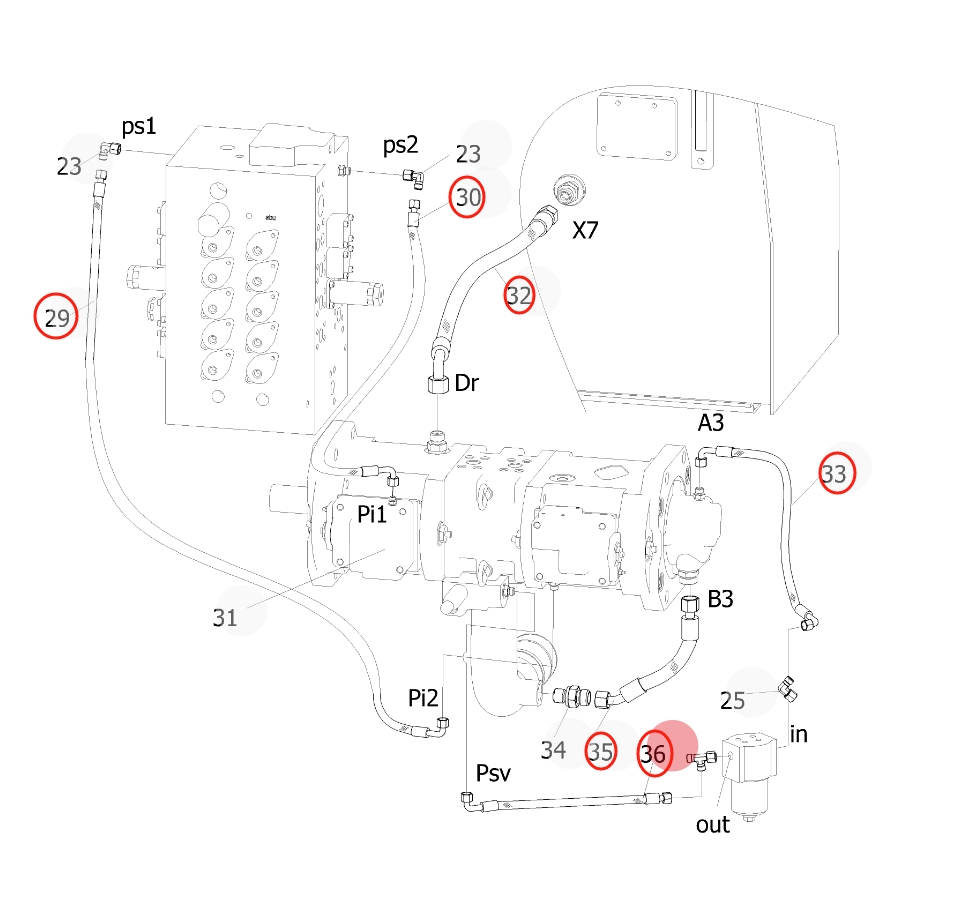

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 730502000799 before removing the hose.

Sunward SWE235E-3 installation diagram showing hydraulic hose 730502000799 at Pipe No. 30 — Sunward SWE235E-3Part 730502000799 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 730502000799
Diagram pipe number: 30
Installation route: 液压泵前PI1~分配阀左PS2
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,000 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
