Individual hose record

157852A1 Hose Repair Specifications

Excavator · Case · CX800 · Attachments – Breaker

Finished length1,650 mm

Locate this hose

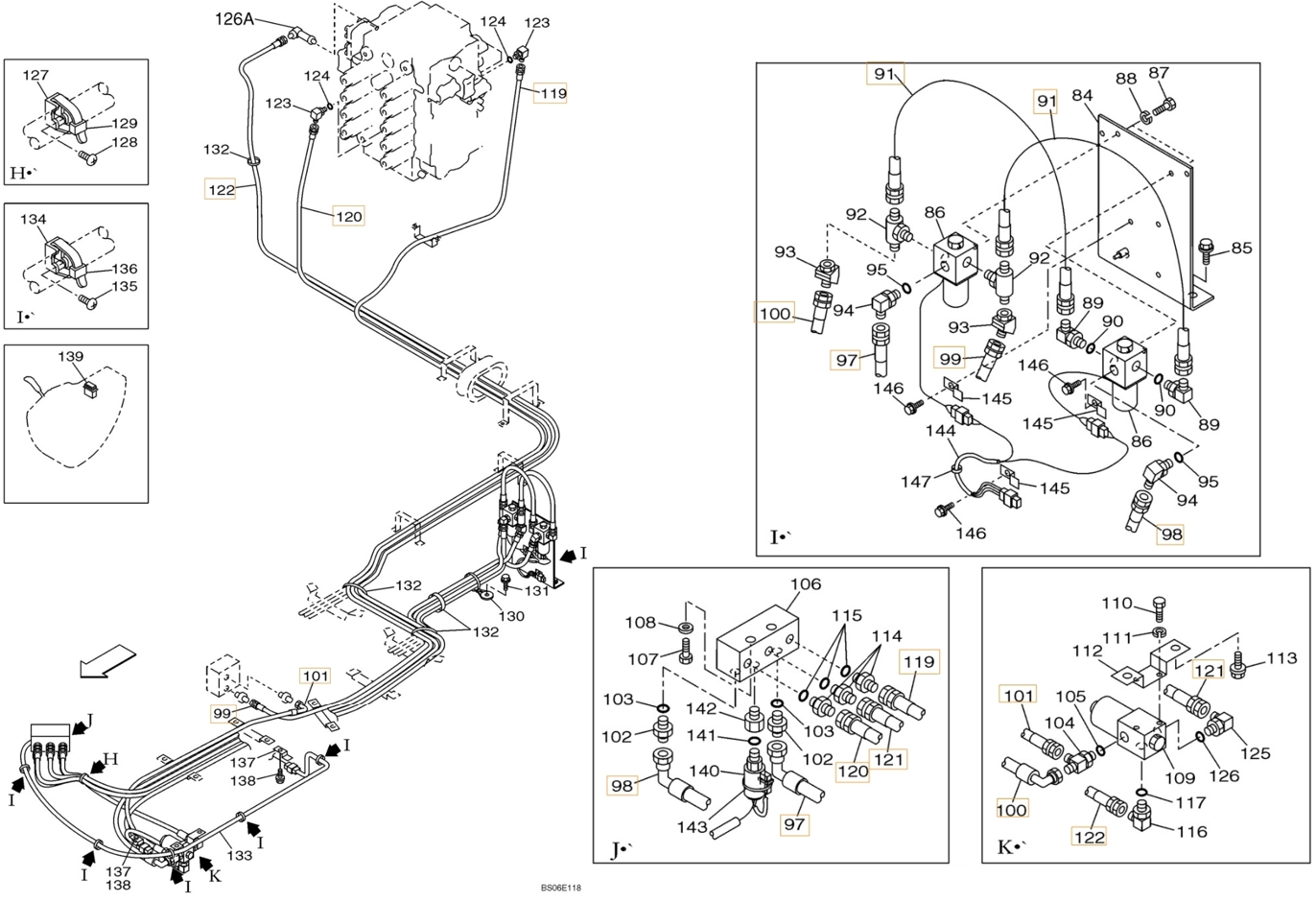

Installation diagram — Pipe No. 99

Locate Pipe No. 99 in the diagram, then confirm part number 157852A1 before removing the hose.

Part number: 157852A1
Diagram pipe number: 99
Installation route: 电磁阀(破碎器)~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 121

Installation route: 电磁阀(破碎器踏板)~压力开关阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 101

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 81

Installation route: 电磁阀(破碎器)~进回油阀

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
