Individual hose record

DS20551033 Hose Repair Specifications

Excavator · Doosan · DX55W · Attachments

Finished length1,530 mm

Locate this hose

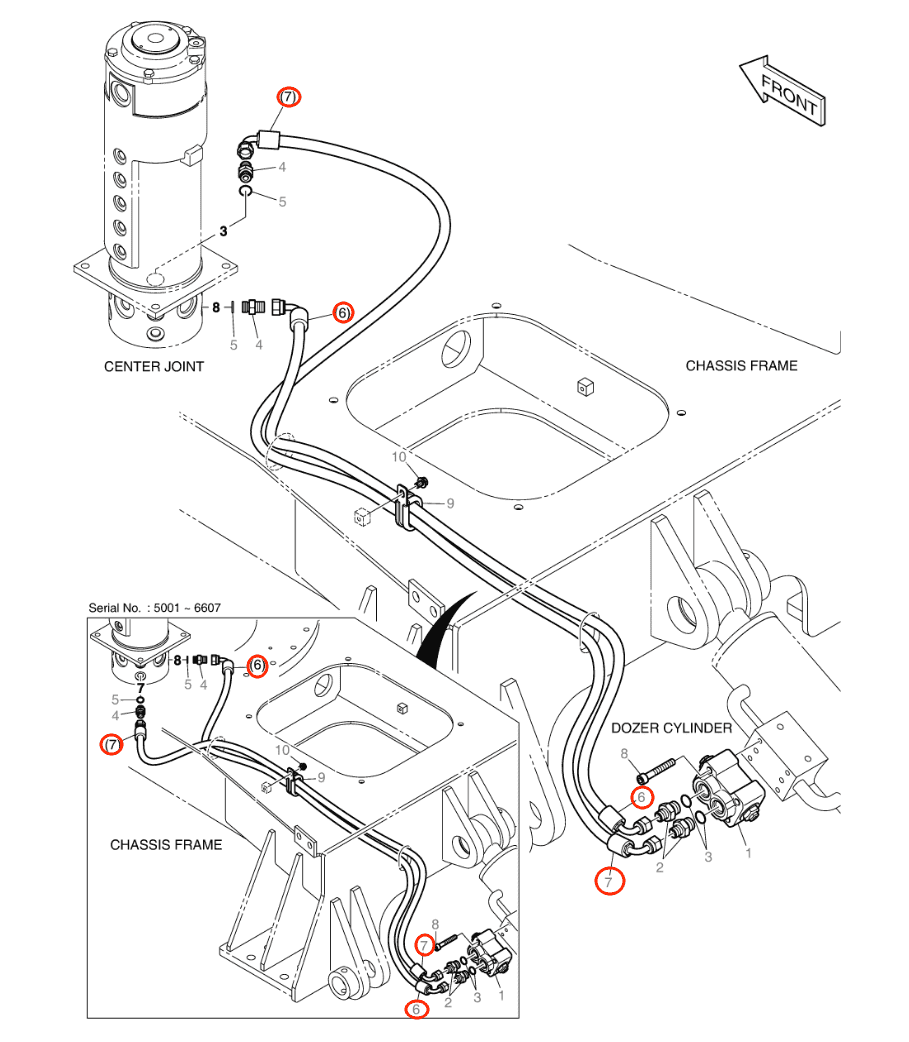

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number DS20551033 before removing the hose.

Doosan DX55W installation diagram showing hydraulic hose DS20551033 at Pipe No. 7 — Doosan DX55WPart DS20551033 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: DS20551033
Diagram pipe number: 7
Installation route: 回转接头3口~推土铲油缸
Hose specification: -
Finished length: 1,530 mm
Left fitting: Female threadOriginal Chinese: 内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

DS2059537

Installation route: 回转接头8口~推土铲油缸

Length: 1,640 mm
Specification: -
Left fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹
Right fitting: 90° elbow, female threadOriginal Chinese: 90°内螺纹

View full repair specifications

Diagram Pipe No. 21

DS2093340

Installation route: 倾斜斗踏板下1口~分配阀PA10口

Length: 710 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
