Individual hose record
DS2113059 Hose Repair Specifications
Excavator · Doosan · DX140LC-3 · Control Lever
Finished length1,670 mm
Locate this hose

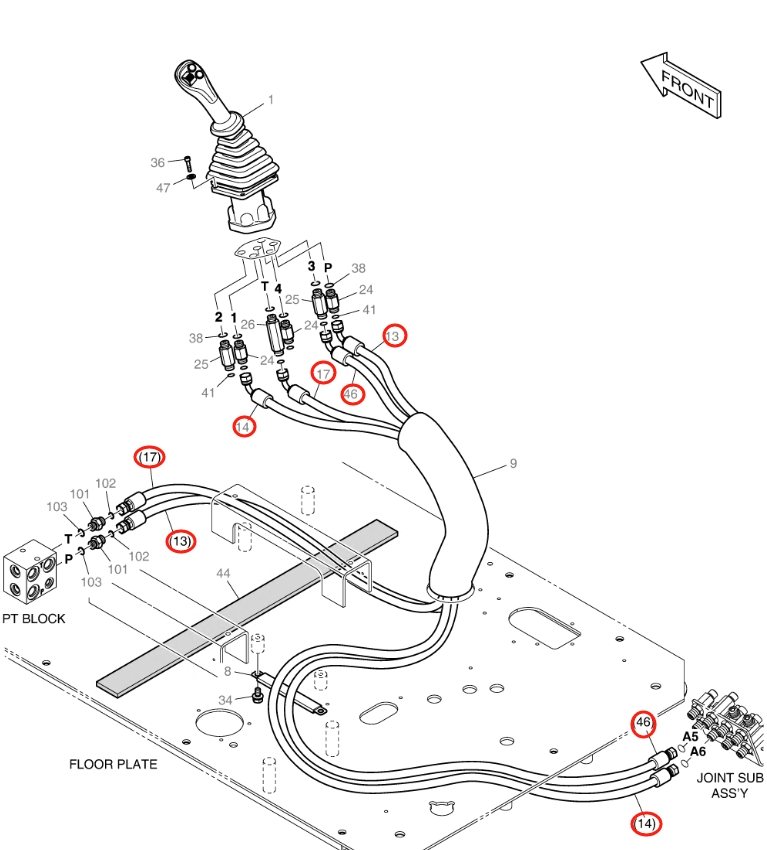

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number DS2113059 before removing the hose.
Repair specifications
- Part number
- DS2113059
- Diagram pipe number
- 17
- Installation route
- 右手柄T口~进回油阀T口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,670 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 75°美制内螺纹平面密封
- Quantity
- 1
