Individual hose record
4452037 Hose Repair Specifications
Excavator · Hitachi · ZX230LC · Attachments
Finished length850 mm
Locate this hose

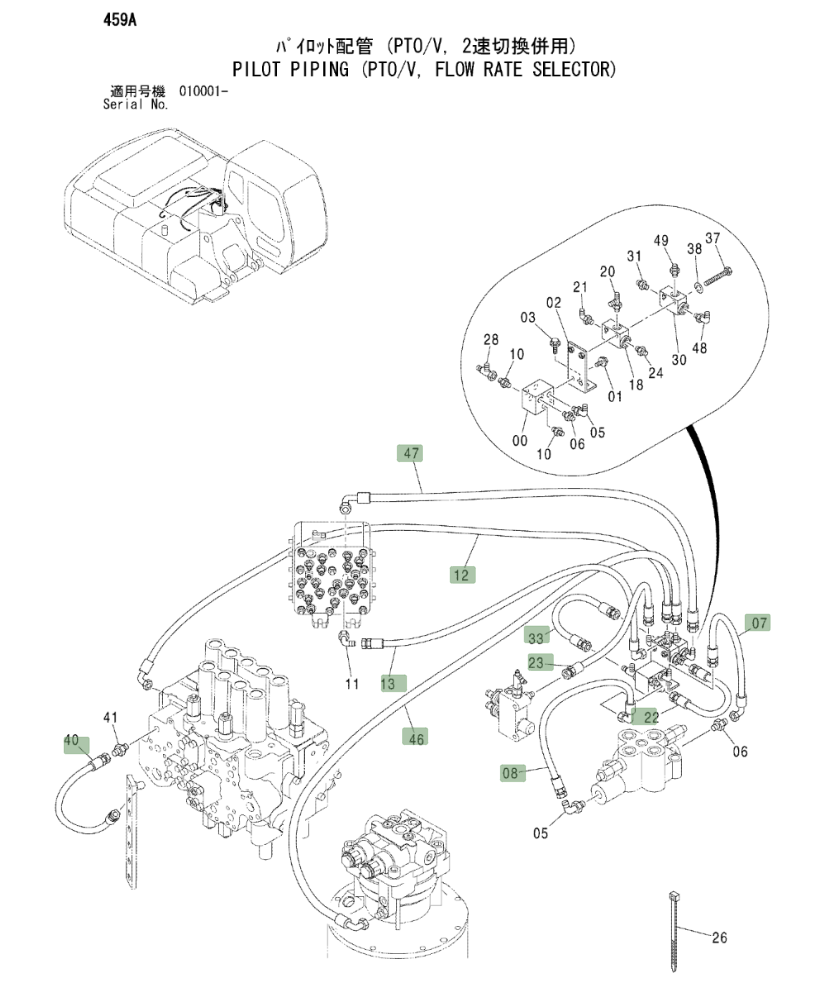

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4452037 before removing the hose.
Repair specifications
- Part number
- 4452037
- Diagram pipe number
- 23
- Installation route
- 流速切换阀~过渡阀块(辅助)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,350 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,050 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 500 mm
- Specification
- DN12;2SN-8;21Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 450 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 650 mm
- Specification
- DN12;4SP-8;34.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 3,000 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Length
- 400 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
