Individual hose record

73050200A164 Hose Repair Specifications

Excavator · Sunward · SWE18UF-3 · Control Lever

Finished length1,650 mm

Locate this hose

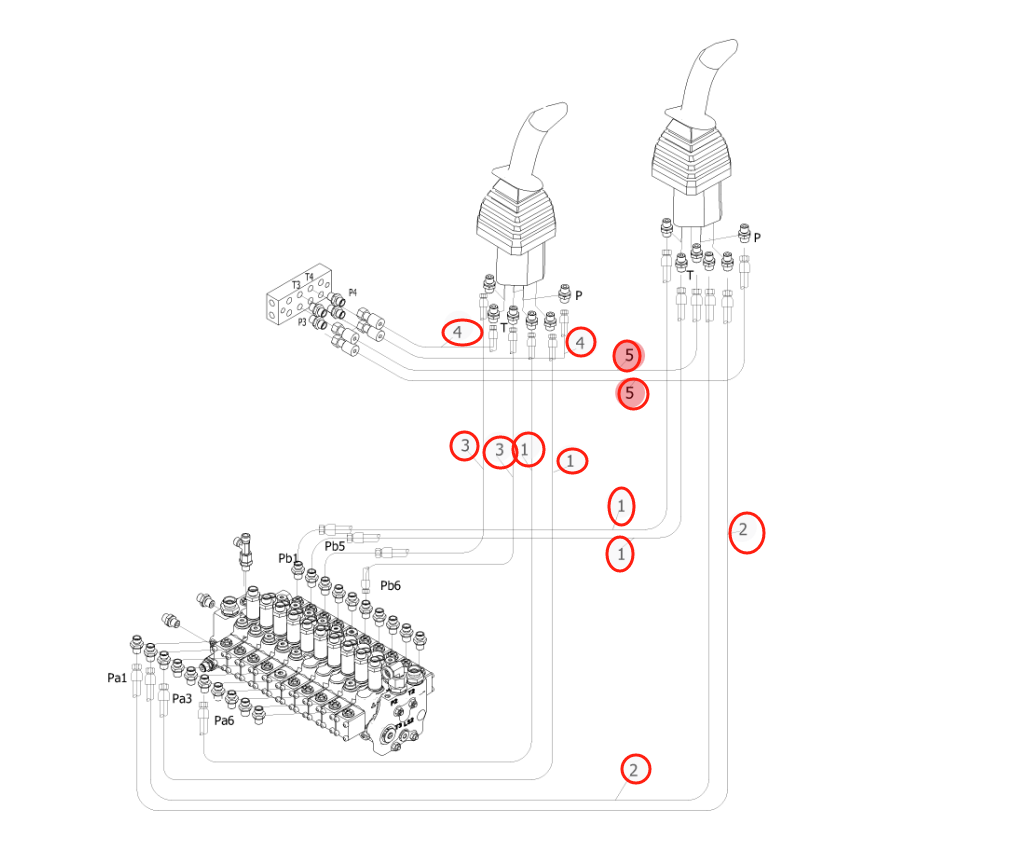

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 73050200A164 before removing the hose.

Sunward SWE18UF-3 installation diagram showing hydraulic hose 73050200A164 at Pipe No. 1 — Sunward SWE18UF-3Part 73050200A164 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 73050200A164
Diagram pipe number: 1
Installation route: 右手柄~分配阀PB1
Hose specification: DN5;1SN-03;25MPa
Finished length: 1,650 mm
Working pressure: 25 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

73050200A164

Installation route: 右手柄~分配阀

Length: 1,650 mm
Specification: DN5;1SN-03;25MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

73050200A164

Installation route: 左手柄~分配阀PA3

Length: 1,650 mm
Specification: DN5;1SN-03;25MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

73050200A164

Installation route: 左手柄~分配阀PA6

Length: 1,650 mm
Specification: DN5;1SN-03;25MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 5

73050200A168

Installation route: 右手柄~进回油阀

Length: 950 mm
Specification: DN5;1SN-03;25MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
