Individual hose record

4658088 Hose Repair Specifications

Excavator · Hitachi · ZX50U-3 · Boom Assembly

Finished length1,240 mm

Locate this hose

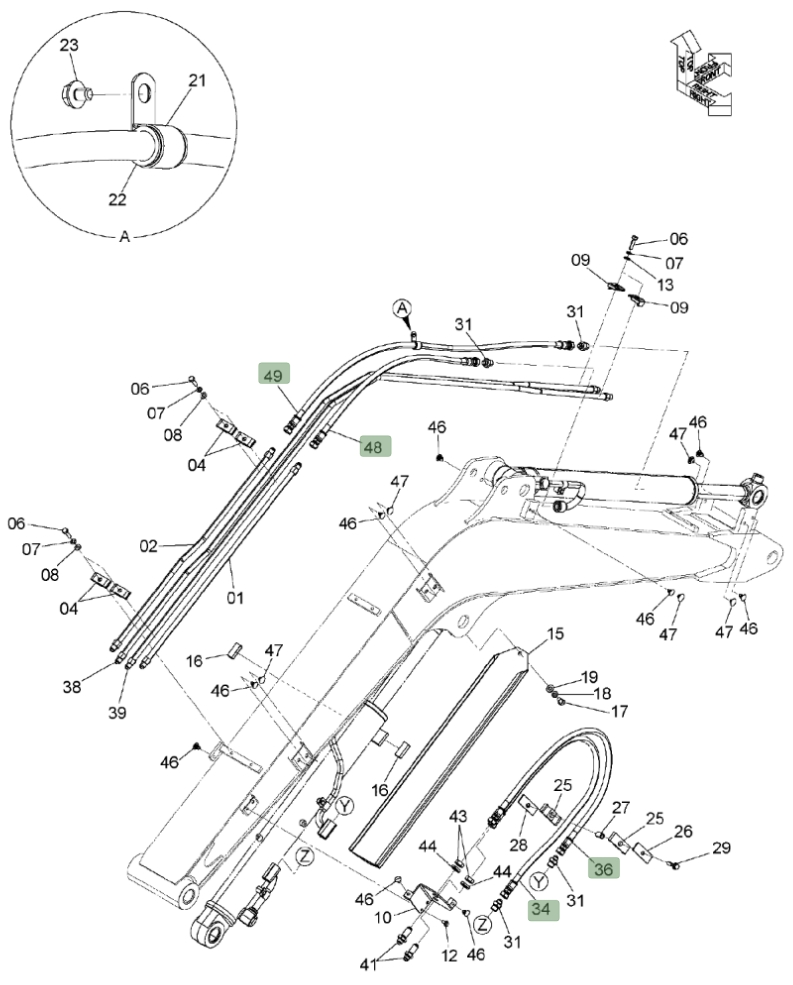

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 4658088 before removing the hose.

Hitachi ZX50U-3 installation diagram showing hydraulic hose 4658088 at Pipe No. 34 — Hitachi ZX50U-3Part 4658088 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 4658088
Diagram pipe number: 34
Installation route: 大臂油缸
Hose specification: DN12;4SP-8;27.5MPa
Finished length: 1,240 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
