Individual hose record
4428745 Hose Repair Specifications
Excavator · Hitachi · EX27U · Attachments
Finished length860 mm
Locate this hose

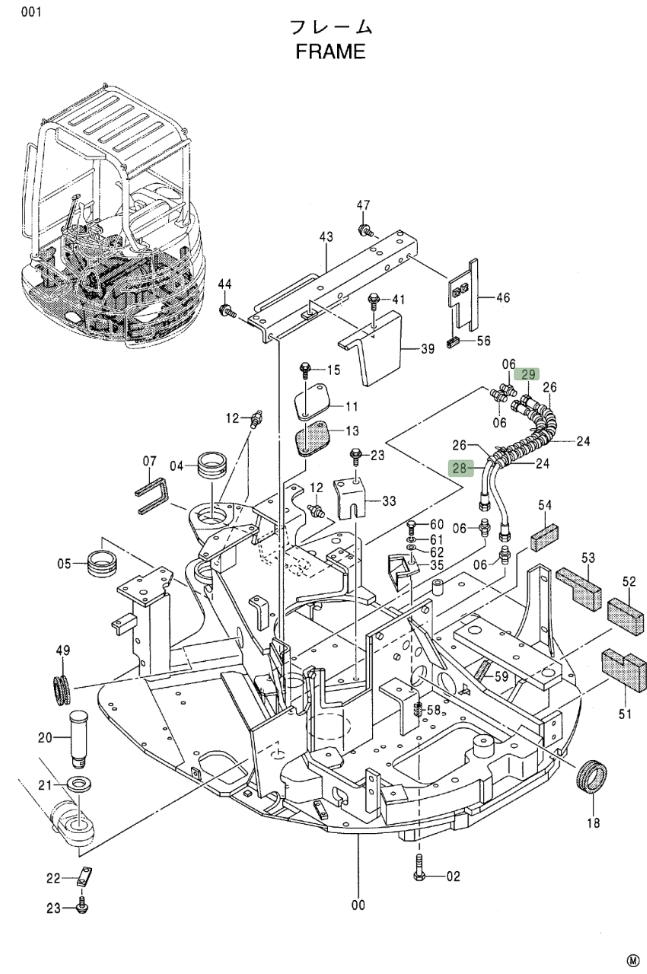

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 4428745 before removing the hose.
Repair specifications
- Part number
- 4428745
- Diagram pipe number
- 28
- Installation route
- 排油管(车架)
- Hose specification
- DN3;1层纤维-2;19.5MPa
- Finished length
- 860 mm
- Working pressure
- 19.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
