9190851 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Swing Motor

Finished length700 mm

Locate this hose

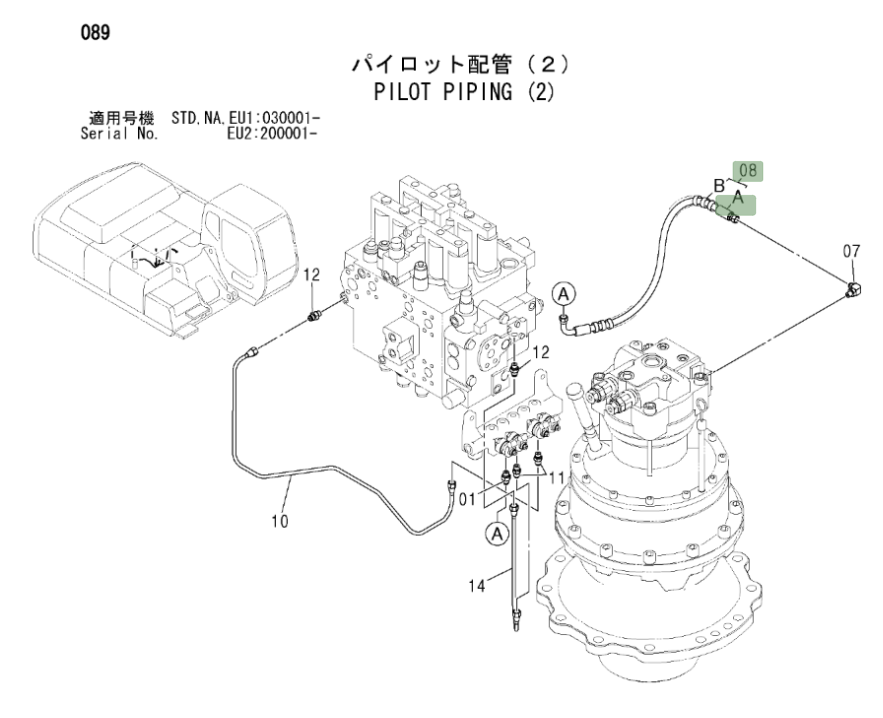

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 9190851 before removing the hose.

Hitachi ZX330LC installation diagram showing hydraulic hose 9190851 at Pipe No. 8 — Hitachi ZX330LCPart 9190851 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 9190851
Diagram pipe number: 8
Installation route: 回转马达~电磁阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 700 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
