Individual hose record

KBV16090 Hose Repair Specifications

Excavator · Case · CX300B · Attachments – Breaker

Finished length2,150 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KBV16090 before removing the hose.

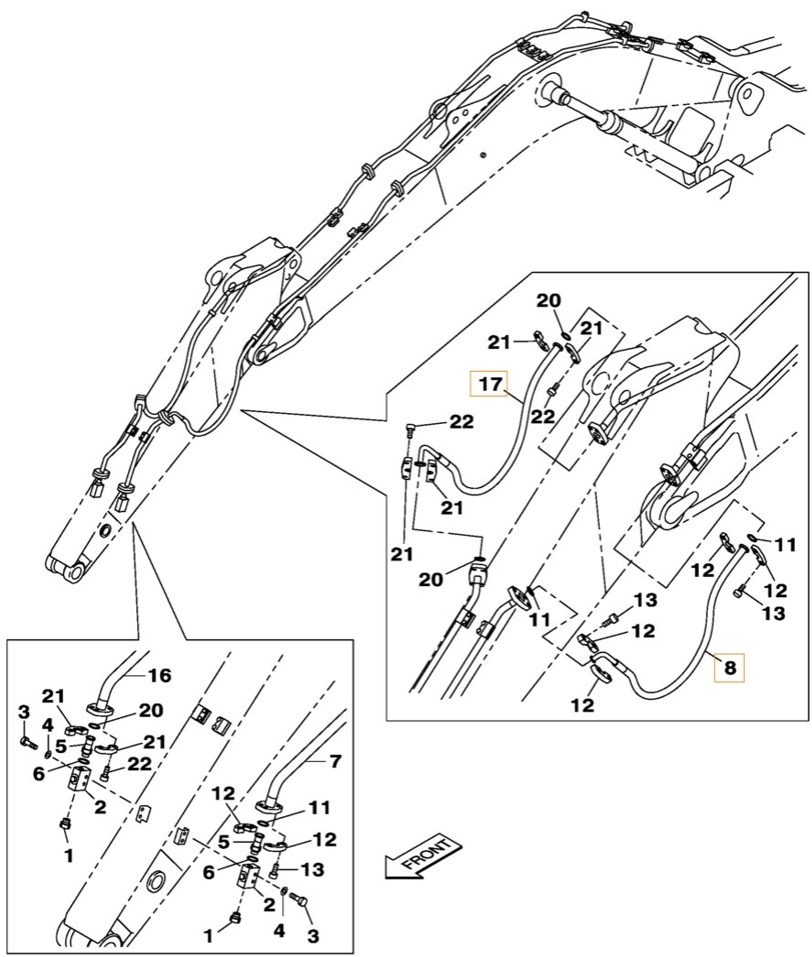

Case CX300B installation diagram showing hydraulic hose KBV16090 at Pipe No. 8 — **Case CX300B**Part KBV16090 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: KBV16090
Diagram pipe number: 8
Installation route: 小臂破碎器截止阀左
Hose specification: DN32;6SH-20;42MPa
Finished length: 2,150 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 1
