Individual hose record

73050200C651 Hose Repair Specifications

Excavator · Sunward · SWE60F-1 · Swivel Joint

Finished length920 mm

Locate this hose

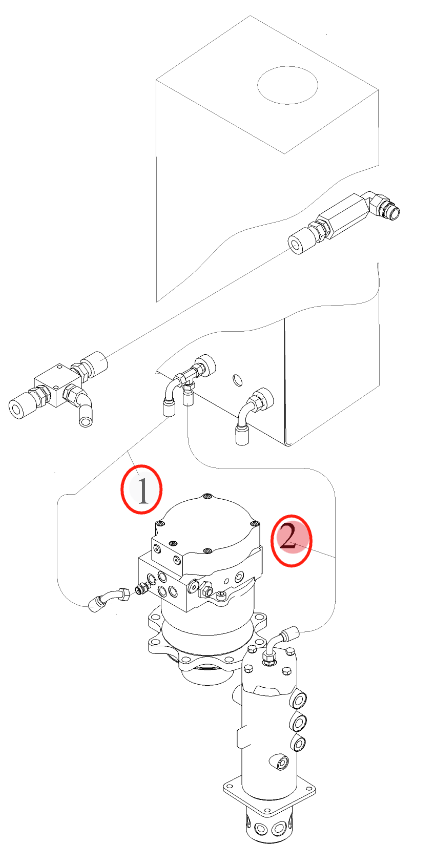

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 73050200C651 before removing the hose.

Sunward SWE60F-1 installation diagram showing hydraulic hose 73050200C651 at Pipe No. 2 — Sunward SWE60F-1Part 73050200C651 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 73050200C651
Diagram pipe number: 2
Installation route: 回转接头~液压油箱
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 920 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
