Individual hose record

DS2119126 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Pedal

Finished length310 mm

Locate this hose

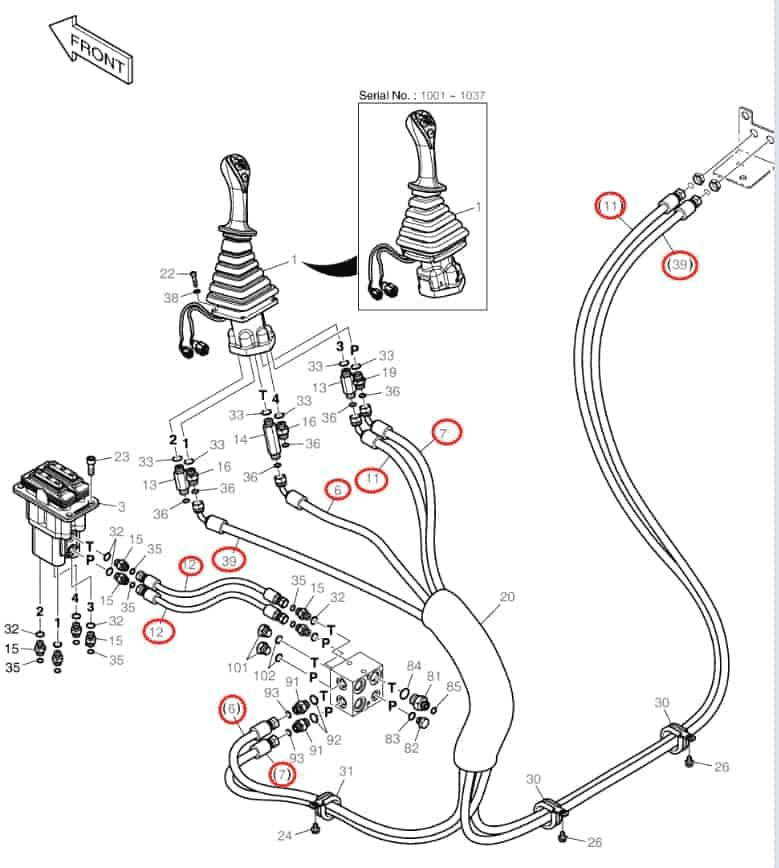

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number DS2119126 before removing the hose.

Part number: DS2119126
Diagram pipe number: 12
Installation route: 行走踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 310 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 103

Installation route: Travel pedal port 4 → control valve port PA1Original Chinese: 行走踏板4口~分配阀PA1口

Length: 2,380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 101

Installation route: 行走踏板1口~分配阀PB6口

Length: 2,120 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
