KHJ2068 Hose Repair Specifications

Excavator · Case · CX750D RTC ME · Attachments – Breaker

Finished length2,250 mm

Locate this hose

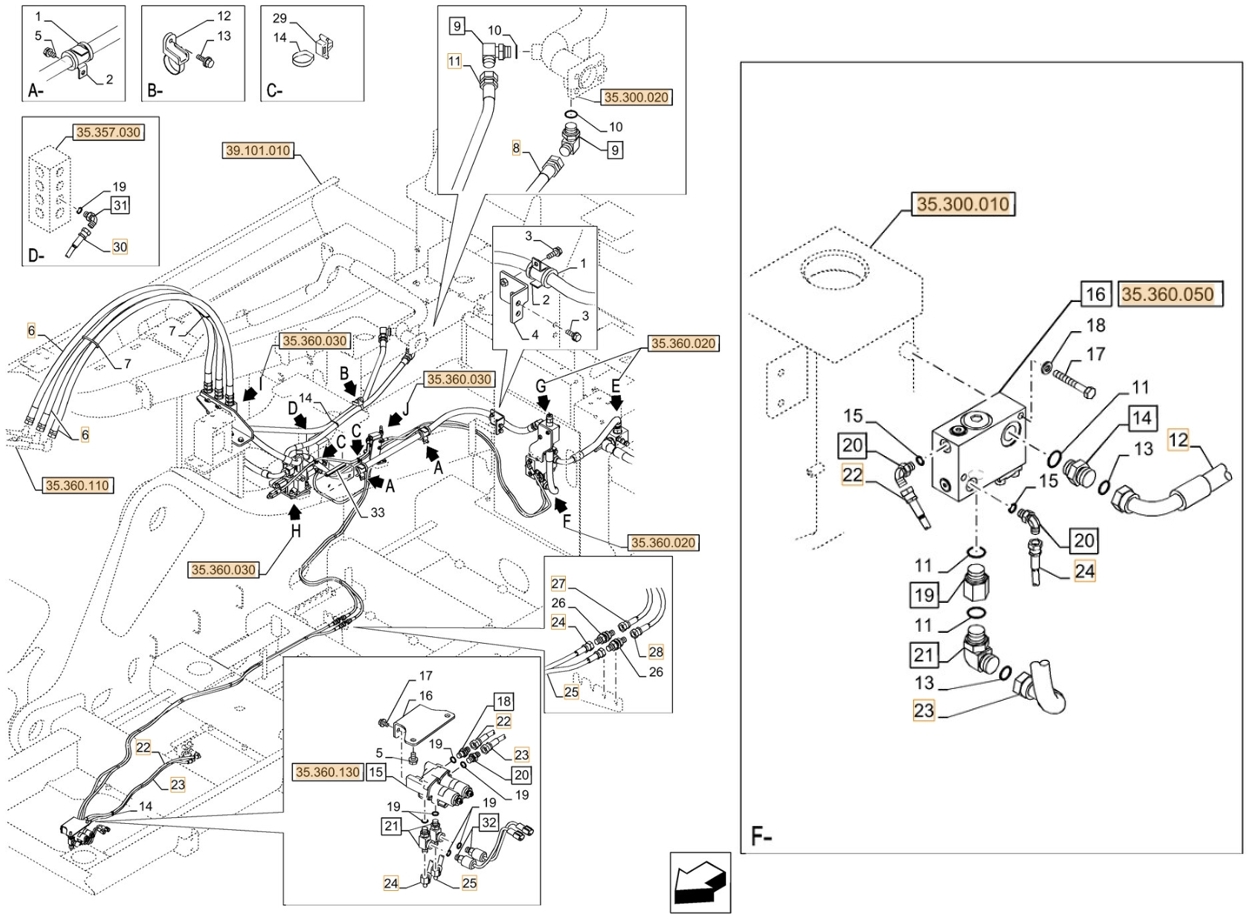

Installation diagram — Pipe No. D30-F22

Locate Pipe No. D30-F22 in the diagram, then confirm part number KHJ2068 before removing the hose.

Part number: KHJ2068
Diagram pipe number: D30-F22
Installation route: 液压油箱过渡阀块~过渡阀块(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,250 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. L25

Installation route: 破碎器踏板~接头(破碎器踏板)

Length: 2,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. L22

Installation route: 破碎器踏板~进回油阀

Diagram Pipe No. 6

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. L23

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
