Individual hose record
730502002852 Hose Repair Specifications
Excavator · Sunward · SWE215F-5 · Attachments – Quick Coupler
Finished length890 mm
Locate this hose

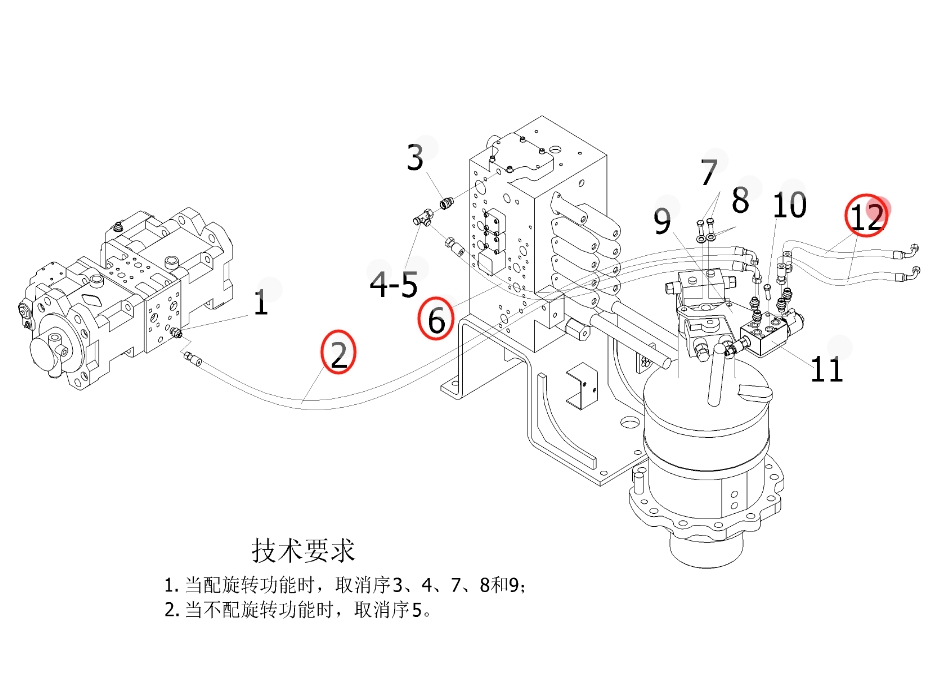

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 730502002852 before removing the hose.
Repair specifications
- Part number
- 730502002852
- Diagram pipe number
- 6
- Installation route
- 电磁阀(快换)~分配阀右
- Hose specification
- DN10;1SN-06;20.7MPa
- Finished length
- 890 mm
- Working pressure
- 20.7 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
