Individual hose record

4313427 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Attachments

Finished length1,000 mm

Locate this hose

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number 4313427 before removing the hose.

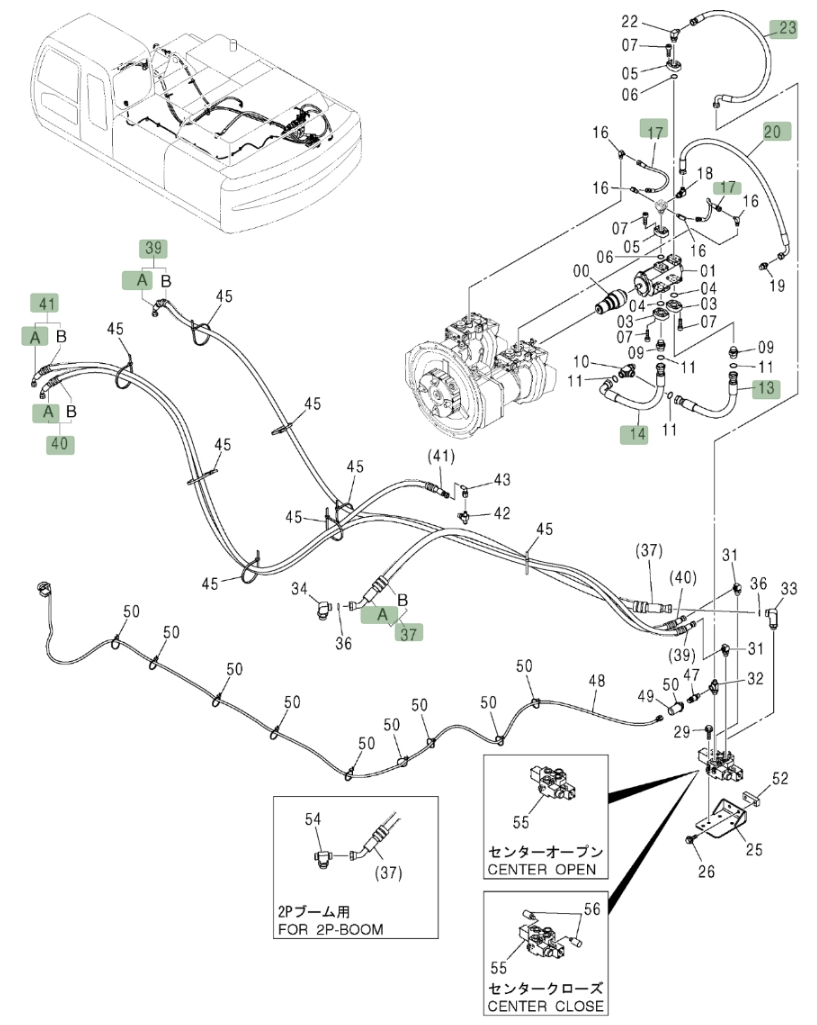

Hitachi ZX370 installation diagram showing hydraulic hose 4313427 at Pipe No. 20 — Hitachi ZX370Part 4313427 · Pipe No. 20Open full-size diagram

Repair specifications

Part number: 4313427
Diagram pipe number: 20
Installation route: 先导泵~控制阀(辅助)
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,000 mm
Working pressure: 16 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 17

4451995

Installation route: 液压泵~过渡阀块(先导泵)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 13

4437944

Installation route: 进回油阀~电磁阀(进回油阀)

Length: 650 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 16

4442331

Installation route: 分配阀后~电磁阀

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 27

4452733

Installation route: 过渡阀块(分节大臂)~过渡阀块(分节大臂)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 17

4313427

Installation route: 液压泵~控制阀(辅助)

Length: 1,000 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4323278

Installation route: 先导泵~吸油铁管

Length: 650 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
