- Length
- 770 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
DS2119105 Hose Repair Specifications
Excavator · Doosan · DX140LC-3 · Solenoid Valve
Finished length770 mm
Locate this hose

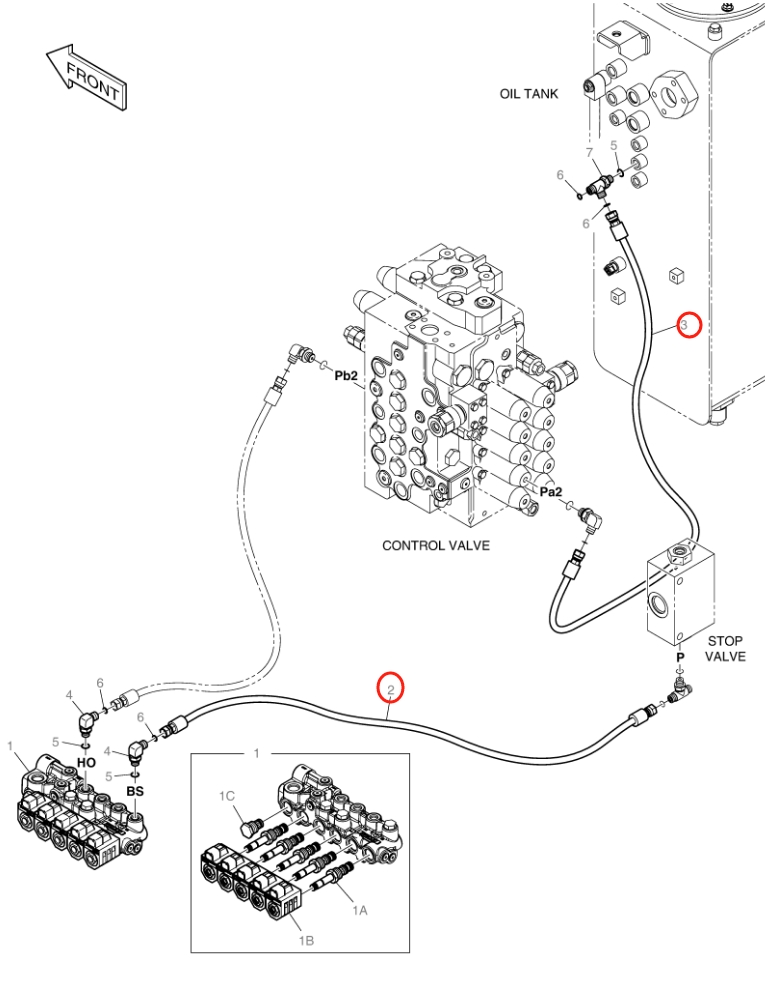

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number DS2119105 before removing the hose.
Repair specifications
- Part number
- DS2119105
- Diagram pipe number
- 2
- Installation route
- 电磁阀BS口~截止阀(分配阀后下)P口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 770 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
