Individual hose record

4676586 Hose Repair Specifications

Excavator · Hitachi · ZX210LC-5G · Boom Assembly

Finished length880 mm

Locate this hose

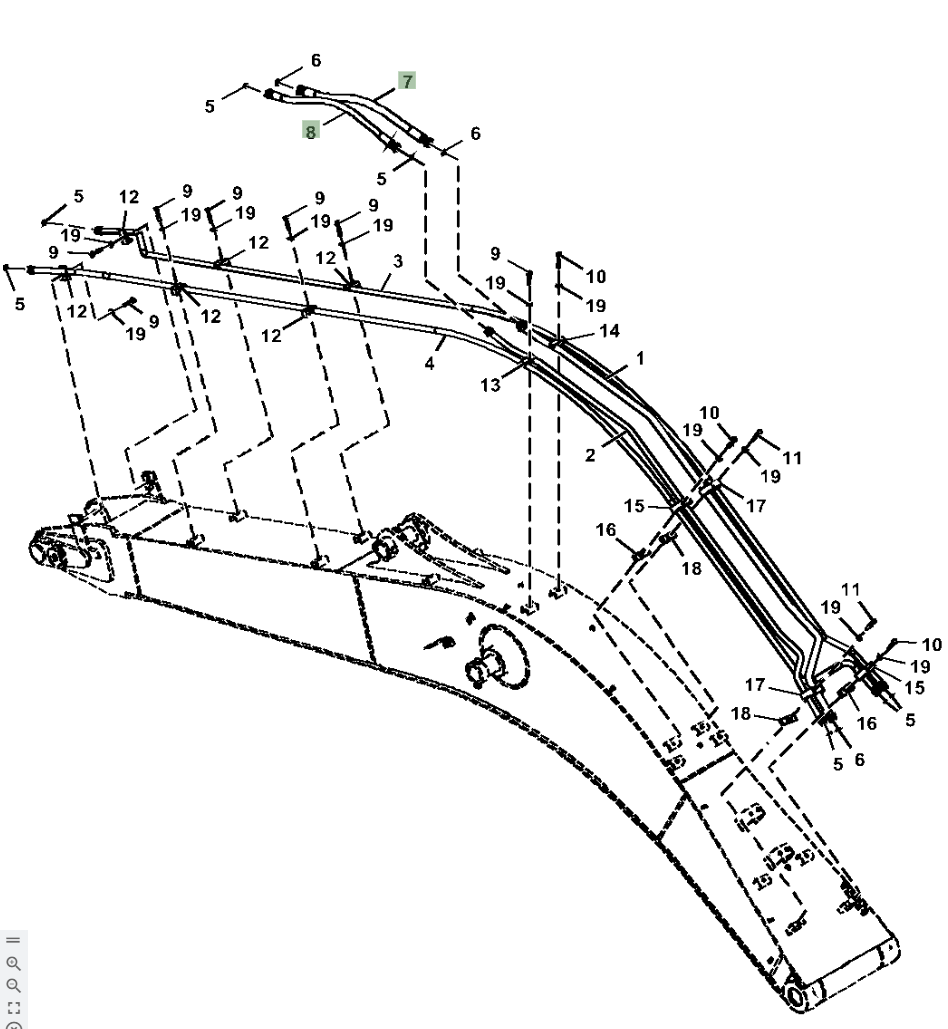

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4676586 before removing the hose.

Part number: 4676586
Diagram pipe number: 8
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN19;4SH-12;42MPa
Finished length: 880 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 24

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 950 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 920 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 21

Installation route: 大臂(中段)~大臂(后段)

Length: 1,450 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 22

Installation route: 大臂(中段)~大臂(后段)

Length: 1,450 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
