Individual hose record
DS2092096 Hose Repair Specifications
Excavator · Doosan · DX55W · Control Lever
Finished length1,730 mm
Locate this hose

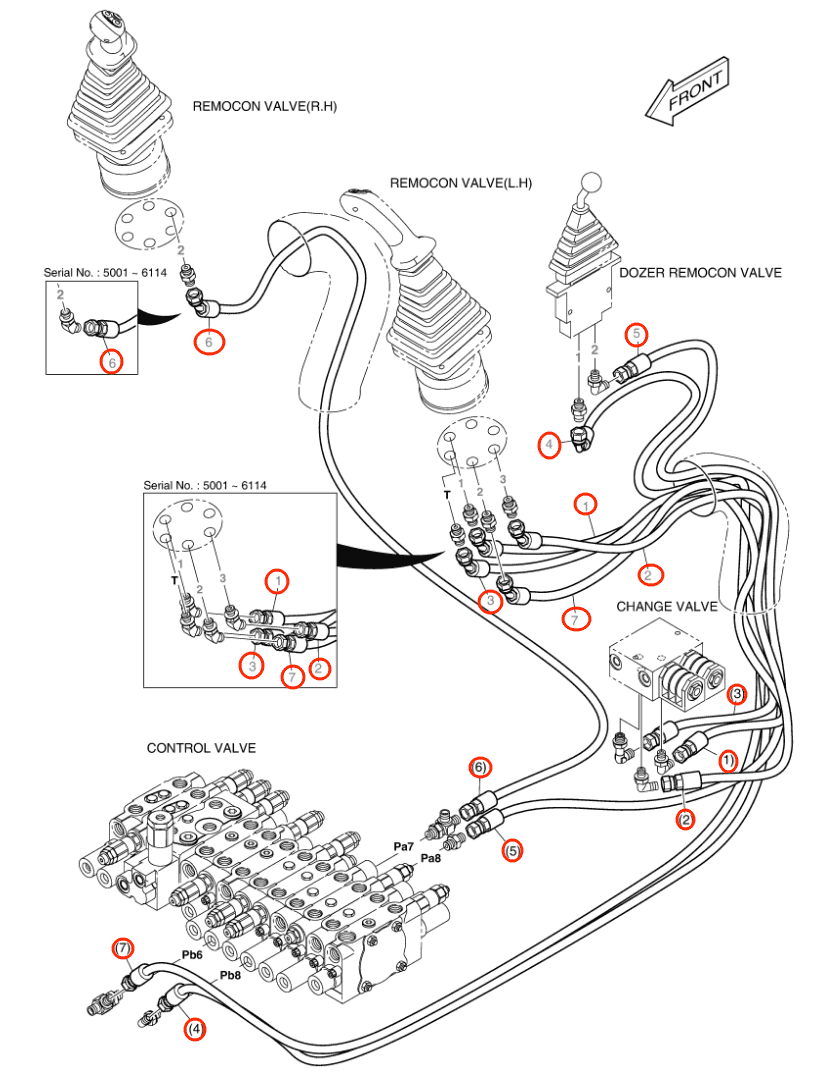

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number DS2092096 before removing the hose.
Repair specifications
- Part number
- DS2092096
- Diagram pipe number
- 6
- Installation route
- 右手柄2口~分配阀PA7口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,730 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
