Individual hose record
4426463 Hose Repair Specifications
Excavator · Hitachi · EX50UNA · Boom Assembly
Finished length1,790 mm
Locate this hose

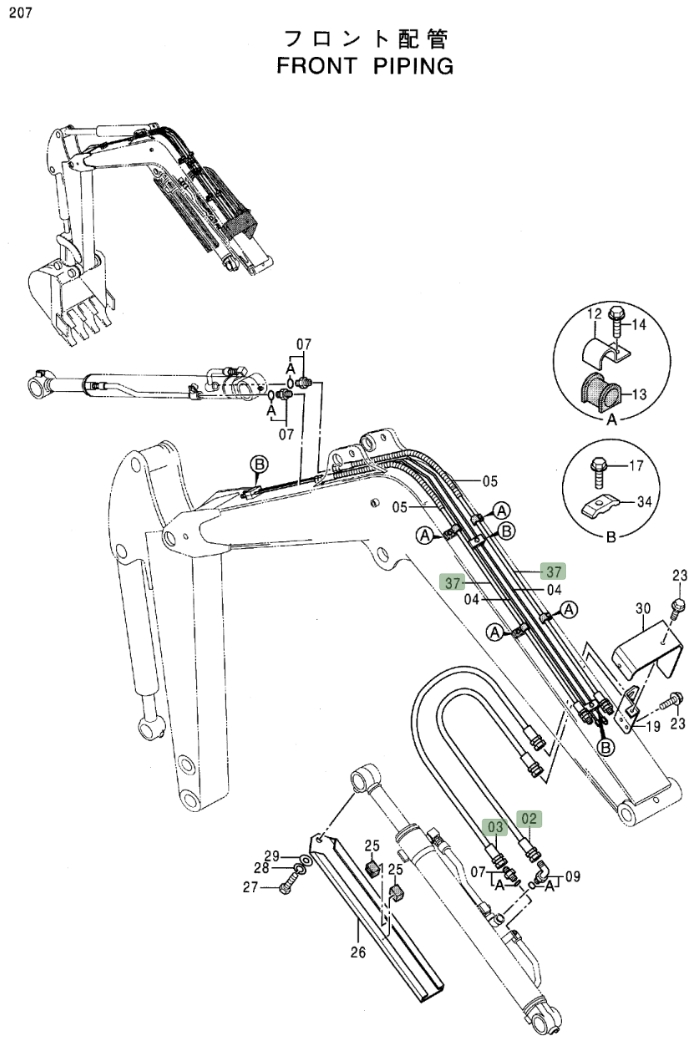

Installation diagram — Pipe No. 37
Locate Pipe No. 37 in the diagram, then confirm part number 4426463 before removing the hose.
Repair specifications
- Part number
- 4426463
- Diagram pipe number
- 37
- Installation route
- 小臂油缸
- Hose specification
- DN12;2SN-8;27.5MPa
- Finished length
- 1,790 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制外螺纹30°内锥
- Quantity
- 2
