Individual hose record

4265833 Hose Repair Specifications

Excavator · Hitachi · ZX200LC-3 · Boom Assembly

Finished length1,300 mm

Locate this hose

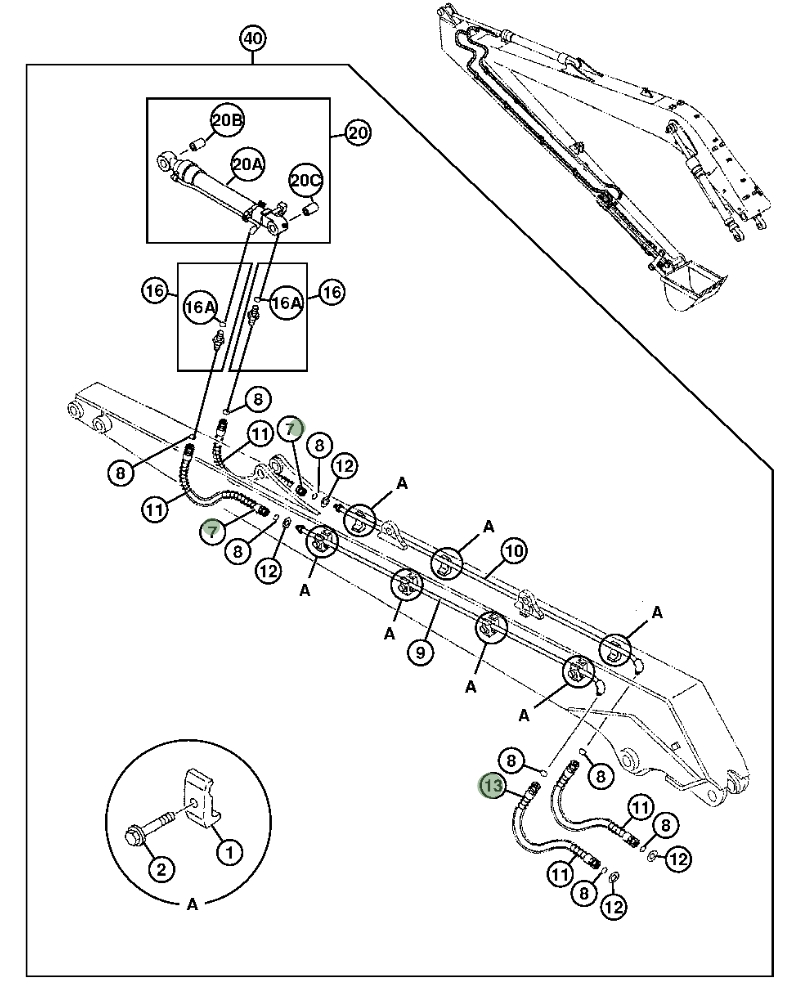

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4265833 before removing the hose.

Hitachi ZX200LC-3 installation diagram showing hydraulic hose 4265833 at Pipe No. 13
Hitachi ZX200LC-3Part 4265833 · Pipe No. 13Open full-size diagram

Repair specifications

Part number
4265833
Diagram pipe number
13
Installation route
铲斗油缸(后段)
Hose specification
DN19;4SP-12;31Mpa
Finished length
1,300 mm
Working pressure
31 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 18

4642488

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length
830 mm
Specification
DN16;4SP-10;38MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 30

4286268

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length
950 mm
Specification
DN19;4SP-12;34.5Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 4

4628956

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length
900 mm
Specification
DN25;4SH-16;38.8MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 16

4614162

Installation route: 大臂油缸左1/左4

Length
850 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 18

4660944

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length
900 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 30

4307644

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length
920 mm
Specification
DN19;4SP-12;34.5Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 16

4661965

Installation route: 大臂油缸左1/左4

Length
930 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 5

4628514

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length
900 mm
Specification
DN19;4SH-12;42MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications
