Individual hose record

730502001330 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Attachments – Breaker

Finished length550 mm

Locate this hose

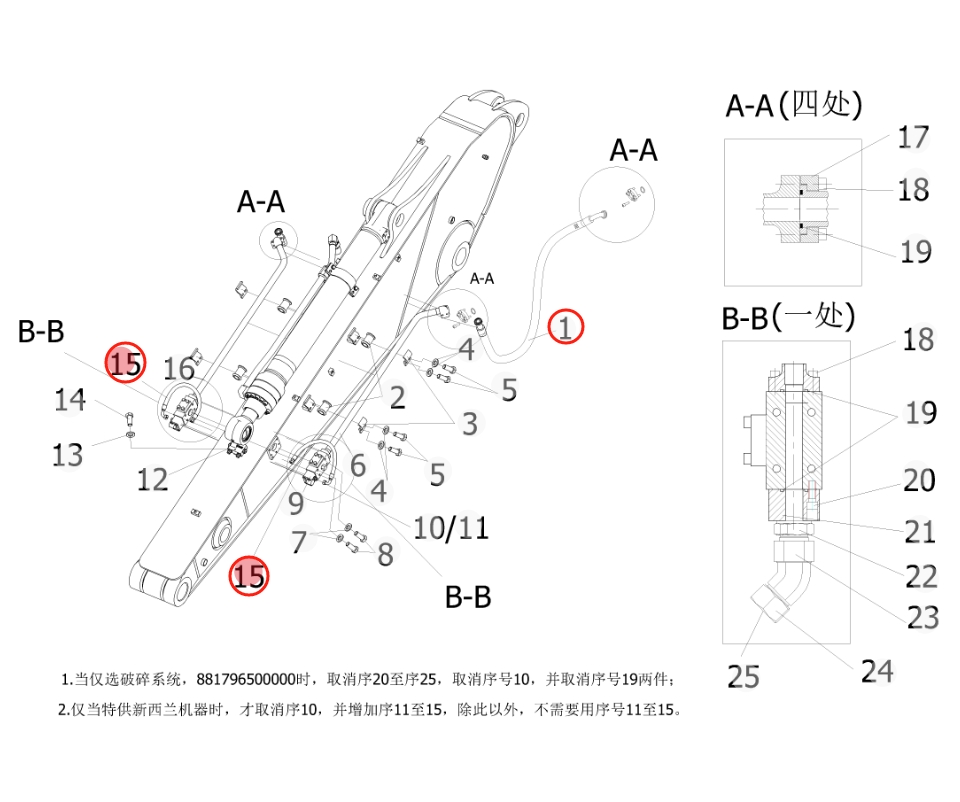

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 730502001330 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 730502001330 at Pipe No. 15 — **Sunward SWE215F-5**Part 730502001330 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 730502001330
Diagram pipe number: 15
Installation route: 小臂破碎器截止阀
Hose specification: DN10;2SN-06;35MPa
Finished length: 550 mm
Working pressure: 35 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 5

730502000390

Installation route: 破碎器踏板YX2~分配阀前PD2

Length: 2,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 24

73050200B221

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 530 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 45°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 6

730502001180

Installation route: 分配阀前PD4~过渡阀块B3(分配阀下)

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 25

730503001639

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 485 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 1

730502007630

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,550 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 7

730501001453

Installation route: 分配阀前PBU~分配阀前PA2

Length: 230 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

730502007630

Installation route: 大臂(破碎器)~铁管(分配阀)

Length: 1,550 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型

View full repair specifications

Diagram Pipe No. 15

730501005306

Installation route: 回油铁管(液压油箱)~接线板(破碎器)

Length: 750 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications
