Individual hose record
4312101 Hose Repair Specifications
Excavator · Hitachi · EX100M-5 · Control Valve
Finished length300 mm
Locate this hose

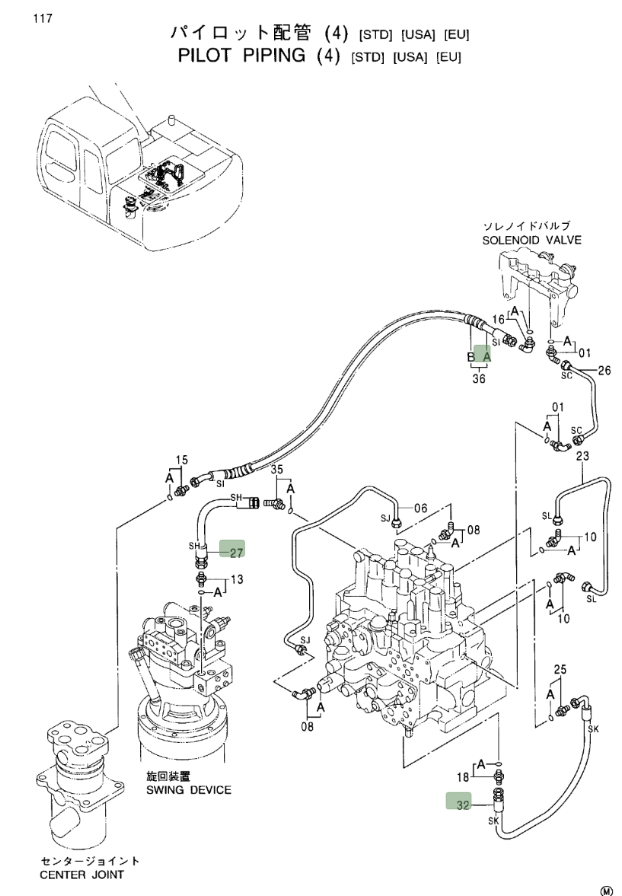

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 4312101 before removing the hose.
Repair specifications
- Part number
- 4312101
- Diagram pipe number
- 27
- Installation route
- 分配阀前~回转马达
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
