Individual hose record
DS2121251 Hose Repair Specifications
Excavator · Doosan · DX140LC-3 · Attachments – Lock Valve
Finished length1,800 mm
Locate this hose

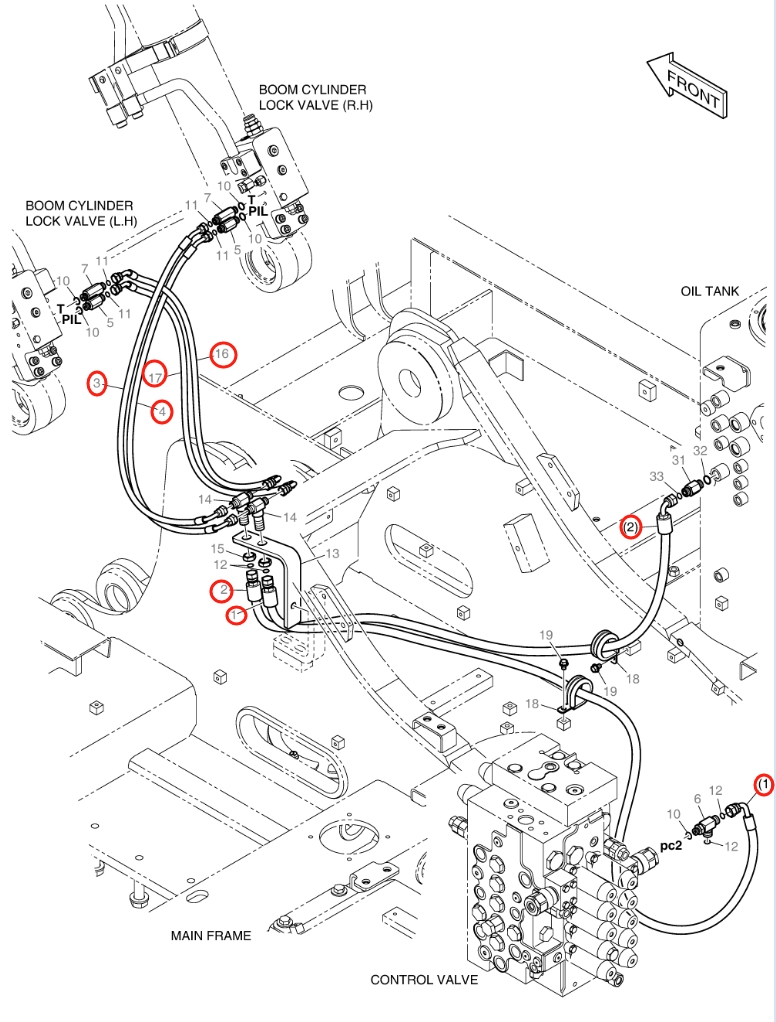

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS2121251 before removing the hose.
Repair specifications
- Part number
- DS2121251
- Diagram pipe number
- 1
- Installation route
- 分配阀PC2口~接线板(大臂油缸锁止阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,800 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
