Individual hose record
4305222 Hose Repair Specifications
Excavator · Hitachi · ZX26U-5N · Swivel Joint
Finished length450 mm
Locate this hose

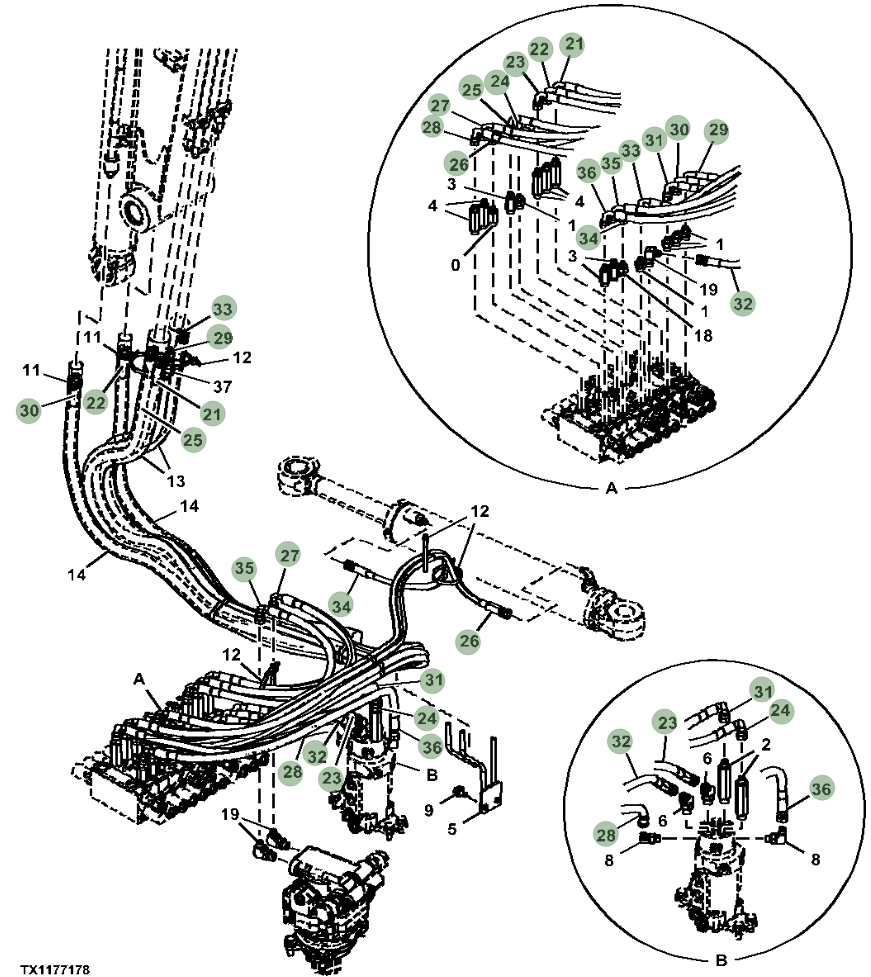

Installation diagram — Pipe No. 32
Locate Pipe No. 32 in the diagram, then confirm part number 4305222 before removing the hose.
Repair specifications
- Part number
- 4305222
- Diagram pipe number
- 32
- Installation route
- 回转接头~分配阀上
- Hose specification
- DN10;2SN-6;20.5MPa
- Finished length
- 450 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
