Individual hose record
4262819 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-5N · Grease Lines
Finished length790 mm
Locate this hose

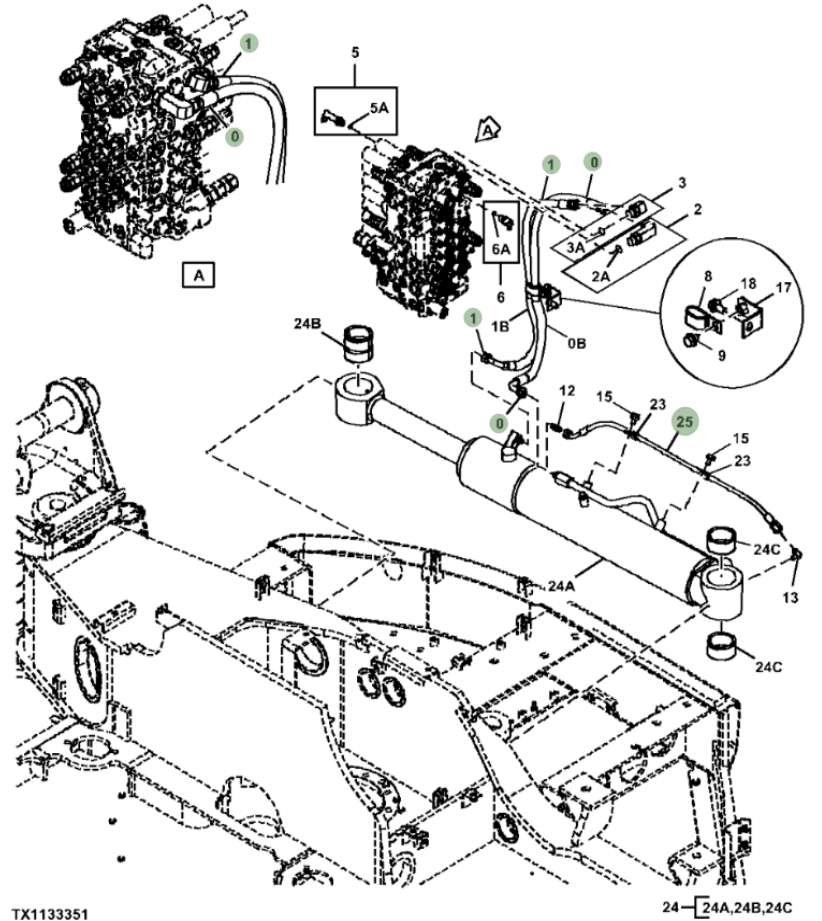

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number 4262819 before removing the hose.
Repair specifications
- Part number
- 4262819
- Diagram pipe number
- 25
- Installation route
- 大臂摆动油缸黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 790 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
