Individual hose record
4290170 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Attachments
Finished length440 mm
Locate this hose

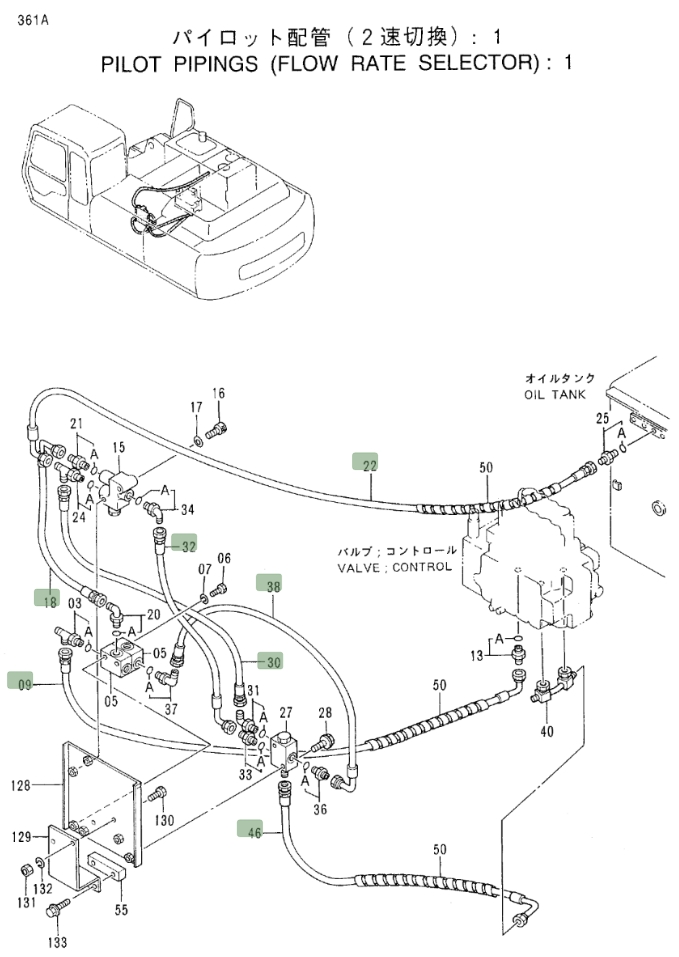

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4290170 before removing the hose.
Repair specifications
- Part number
- 4290170
- Diagram pipe number
- 30
- Installation route
- 流速切换阀~过渡阀块(流速切换)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 440 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
