Diagram Pipe No. 10A
4331038
Installation route: Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Length
- 950 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4366267 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Swing Motor
Finished length470 mm
Locate this hose

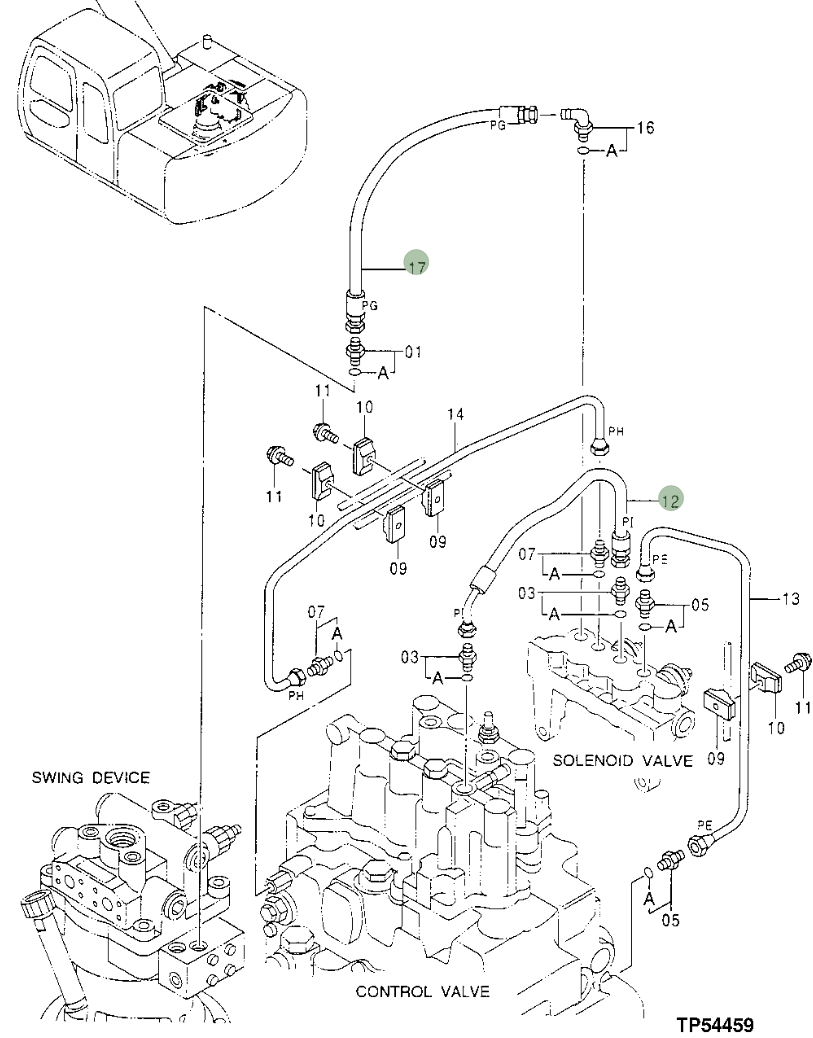

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4366267 before removing the hose.
Repair specifications
- Part number
- 4366267
- Diagram pipe number
- 17
- Installation route
- 回转马达~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 470 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 10
9152075
Installation route: Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Length
- 950 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
