Individual hose record

157852A1 Hose Repair Specifications

Excavator · Case · CX460 · Attachments – Breaker

Finished length1,650 mm

Locate this hose

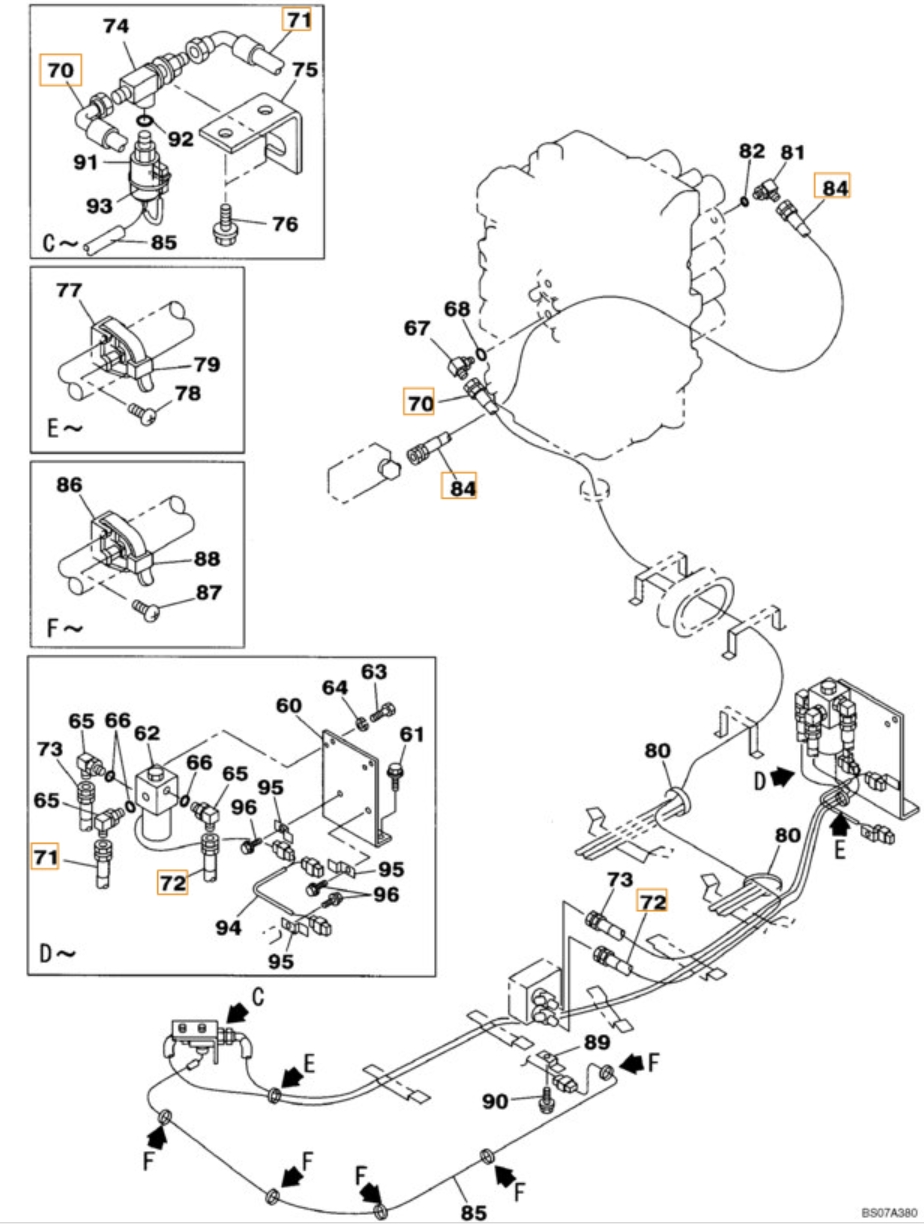

Installation diagram — Pipe No. 84

Locate Pipe No. 84 in the diagram, then confirm part number 157852A1 before removing the hose.

Part number: 157852A1
Diagram pipe number: 84
Installation route: 分配阀后左~液压油箱过渡阀块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 67

Installation route: 电磁阀(破碎器踏板)~压力开关阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 46

Installation route: 破碎器踏板~压力开关阀(破碎器踏板)

Length: 2,450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 49

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
