Individual hose record
4471887 Hose Repair Specifications
Excavator · Hitachi · ZX75US-3 · Control Lever
Finished length2,150 mm
Locate this hose

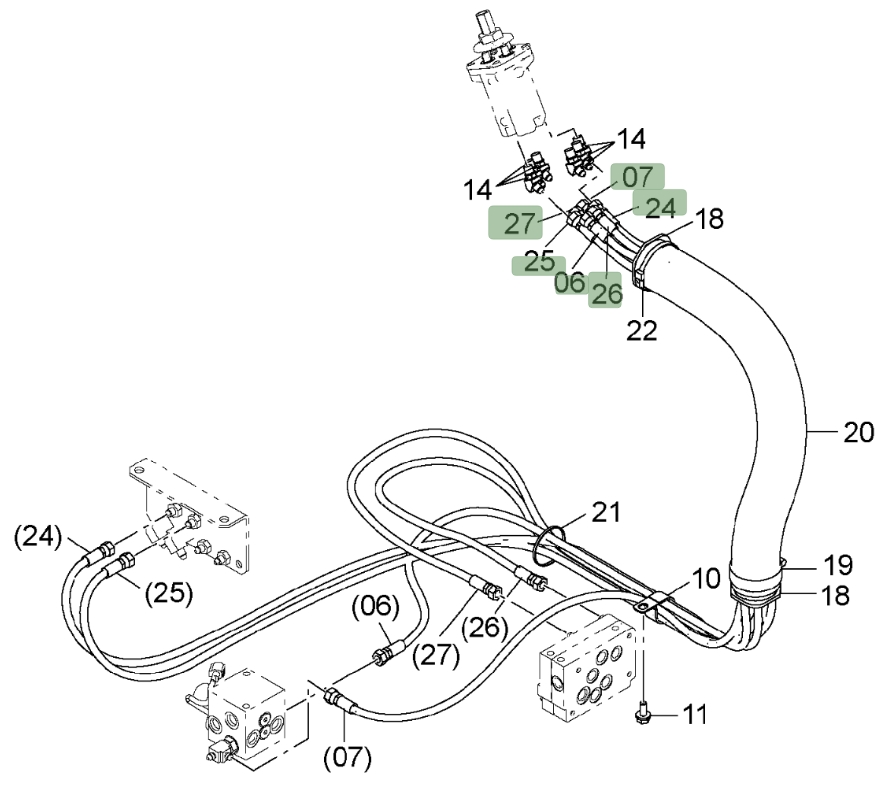

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4471887 before removing the hose.
Repair specifications
- Part number
- 4471887
- Diagram pipe number
- 26
- Installation route
- 右手柄~过渡阀块(进回油阀)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,150 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
