Individual hose record

DS2093160 Hose Repair Specifications

Excavator · Doosan · DX55 · Pedal

Finished length2,700 mm

Locate this hose

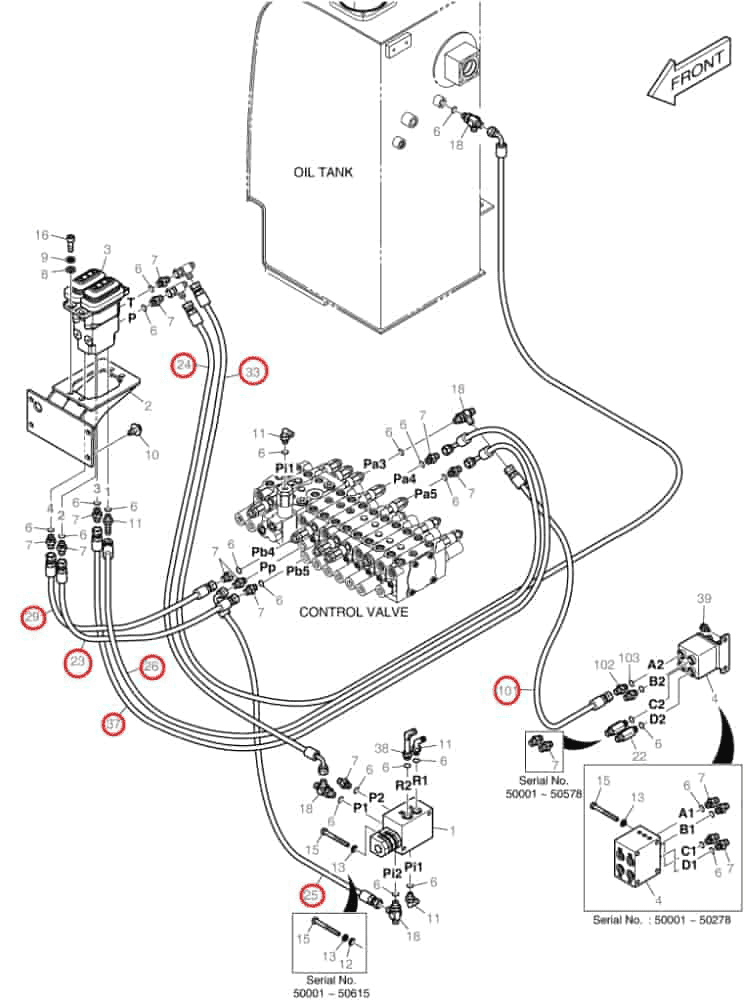

Installation diagram — Pipe No. 33

Locate Pipe No. 33 in the diagram, then confirm part number DS2093160 before removing the hose.

Part number: DS2093160
Diagram pipe number: 33
Installation route: 行走踏板T口~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,700 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: 行走踏板2口~梭阀(踏板)A2口

Length: 530 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 29

Installation route: 行走踏板4口~分配阀PB4口

Length: 360 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 20

Installation route: 行走踏板P口~破碎器踏板P口

Length: 490 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
