Individual hose record

9263974 Hose Repair Specifications

Excavator · Hitachi · ZX240LC-3 · Boom Assembly

Finished length1,700 mm

Locate this hose

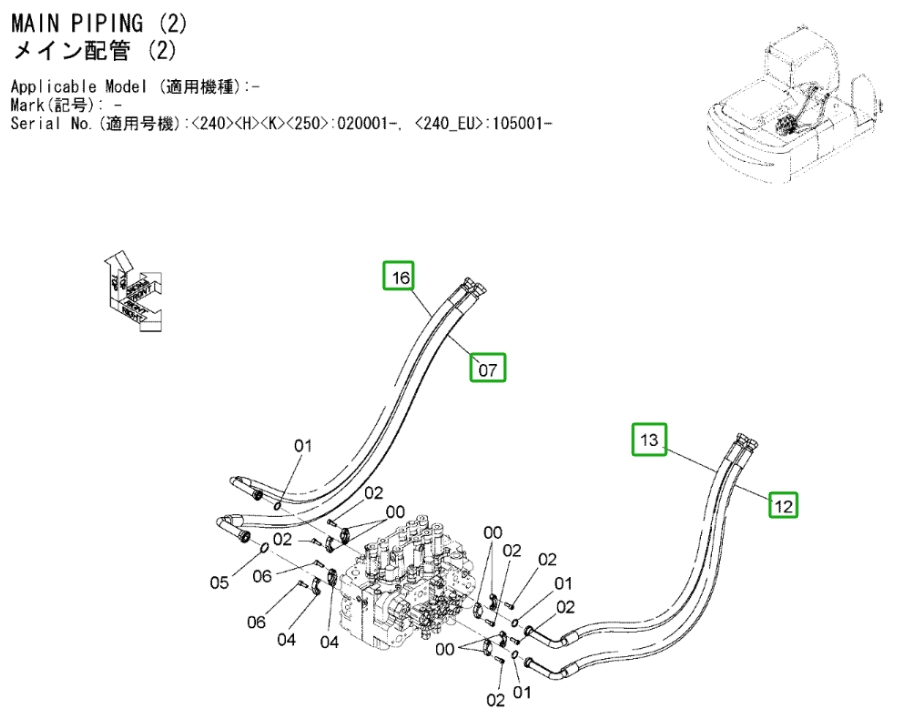

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 9263974 before removing the hose.

Part number: 9263974
Diagram pipe number: 7
Installation route: 大臂左2
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,700 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1

Same system

Diagram Pipe No. 13

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 950 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: 大臂油缸

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: 大臂油缸左1/左4

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 31

Installation route: 铲斗油缸左

Length: 1,650 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 980 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

Diagram Pipe No. 15

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
