Individual hose record

4375295 Hose Repair Specifications

Excavator · Hitachi · ZX600LC · Attachments – Breaker

Finished length700 mm

Locate this hose

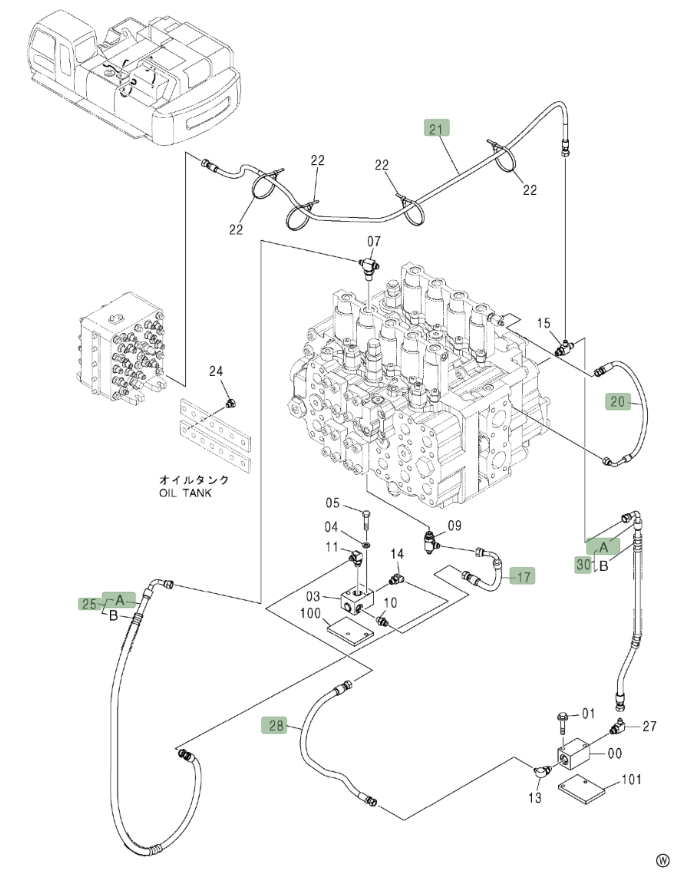

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 4375295 before removing the hose.

Hitachi ZX600LC installation diagram showing hydraulic hose 4375295 at Pipe No. 28 — Hitachi ZX600LCPart 4375295 · Pipe No. 28Open full-size diagram

Repair specifications

Part number: 4375295
Diagram pipe number: 28
Installation route: 过渡阀块(破碎器)~过渡阀块(破碎器)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 700 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

4379172

Installation route: 破碎器踏板~进回油阀

Length: 500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4331508

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4343209

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 900 mm
Specification: DN32;4SP-20;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10A

4462256

Installation route: 破碎器踏板~中转接头

Length: 3,050 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
