Individual hose record

KBV16090 Hose Repair Specifications

Excavator · Case · CX500D LC ME · Attachments – Breaker

Finished length2,150 mm

Locate this hose

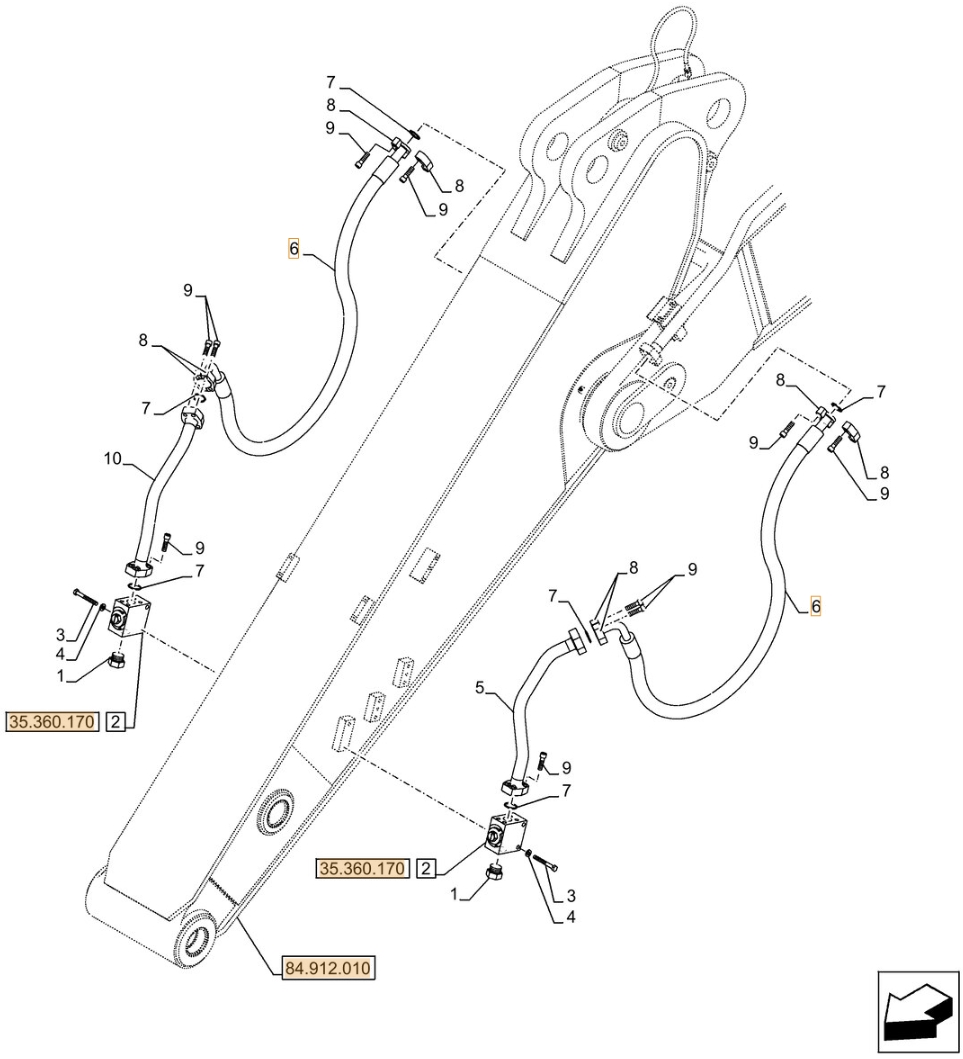

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number KBV16090 before removing the hose.

Case CX500D LC ME installation diagram showing hydraulic hose KBV16090 at Pipe No. 6 — **Case CX500D LC ME**Part KBV16090 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: KBV16090
Diagram pipe number: 6
Installation route: 小臂破碎器截止阀
Hose specification: DN32;6SH-20;42MPa
Finished length: 2,150 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 10

KHJ12230

Installation route: 破碎器踏板~分配阀前

Length: 3,450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KSJ12940

Installation route: 液压泵右~吸油铁管

Length: 910 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. C7-F14

KAJ3619

Installation route: 回油铁管(分配阀)~控制阀(破碎器)

Length: 950 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ11500

Installation route: 破碎器踏板~分配阀后

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. C8-E12-F21

KHJ18110

Installation route: 破碎器踏板~控制阀(破碎器)

Length: 4,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 11

KHJ2093

Installation route: 破碎器踏板~进回油阀

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
