Individual hose record

4635611 Hose Repair Specifications

Excavator · Hitachi · ZX250LC-5G · Boom Assembly

Finished length1,650 mm

Locate this hose

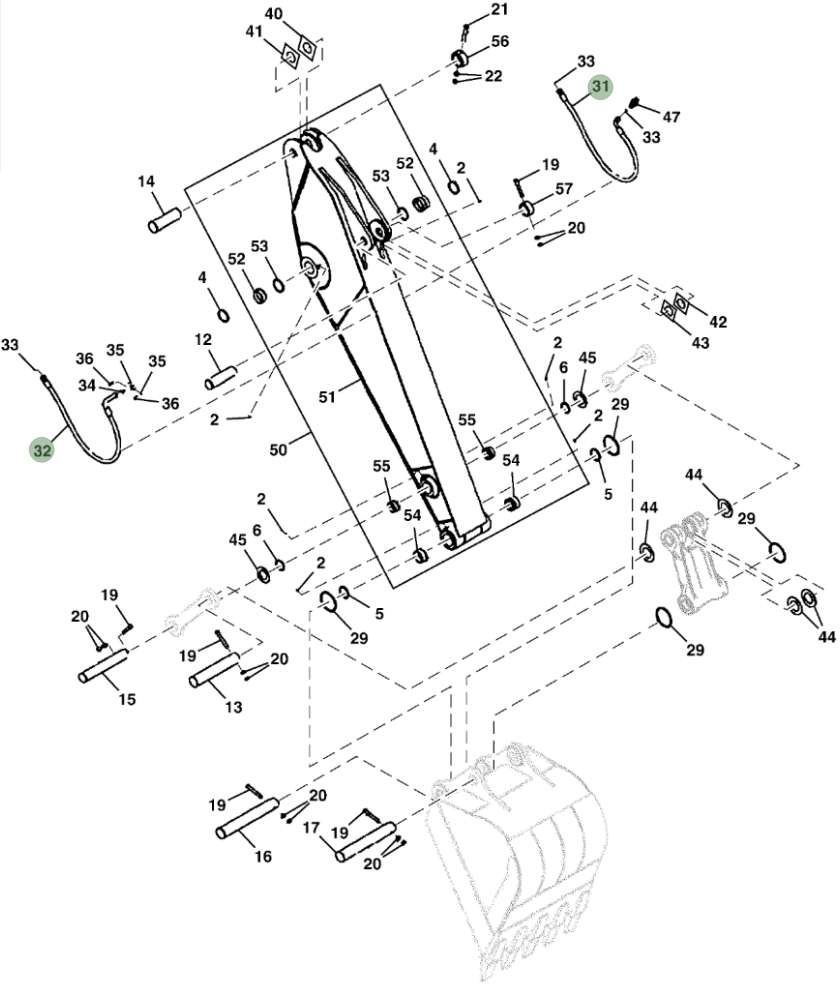

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 4635611 before removing the hose.

Hitachi ZX250LC-5G installation diagram showing hydraulic hose 4635611 at Pipe No. 31 — **Hitachi ZX250LC-5G**Part 4635611 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 4635611
Diagram pipe number: 31
Installation route: 铲斗油缸左
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,650 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1
