Individual hose record

730502002932 Hose Repair Specifications

Excavator · Sunward · SWE365F · Control Lever

Finished length3,450 mm

Locate this hose

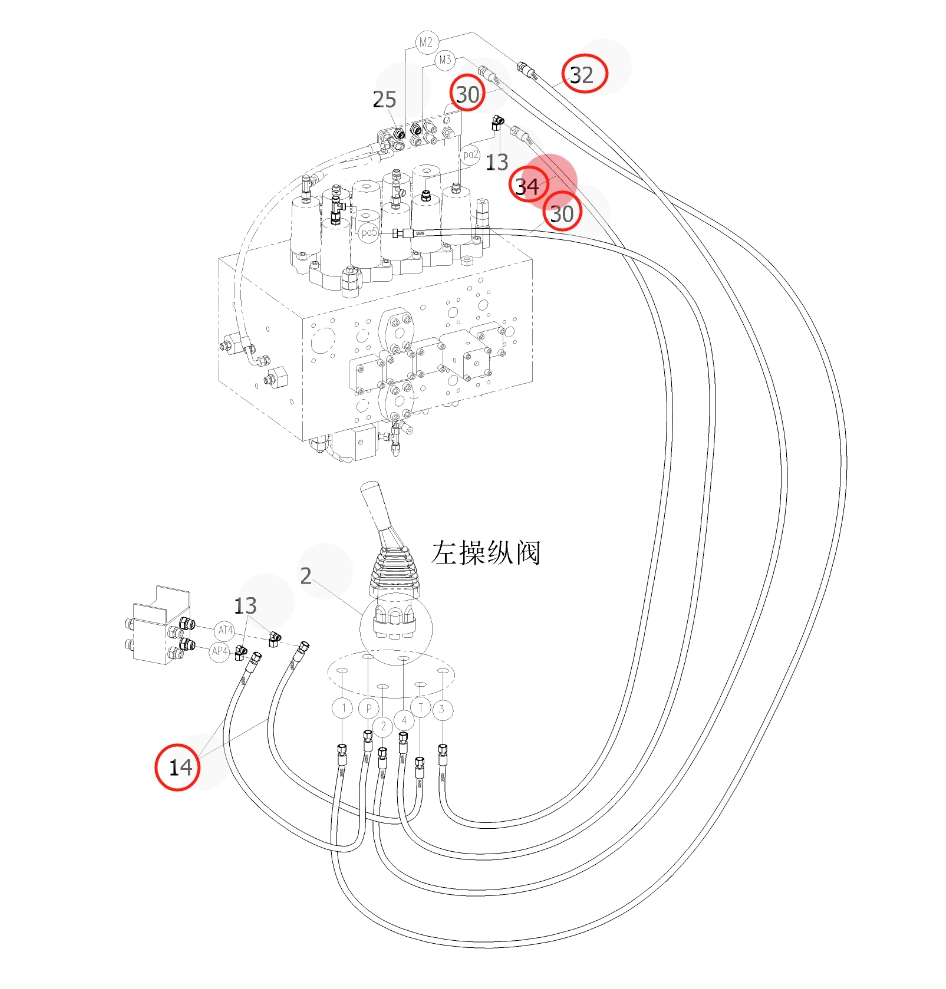

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 730502002932 before removing the hose.

Sunward SWE365F installation diagram showing hydraulic hose 730502002932 at Pipe No. 34 — Sunward SWE365FPart 730502002932 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 730502002932
Diagram pipe number: 34
Installation route: 左手柄~分配阀上PA2
Hose specification: DN8;1SN-05;22.5MPa
Finished length: 3,450 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1
